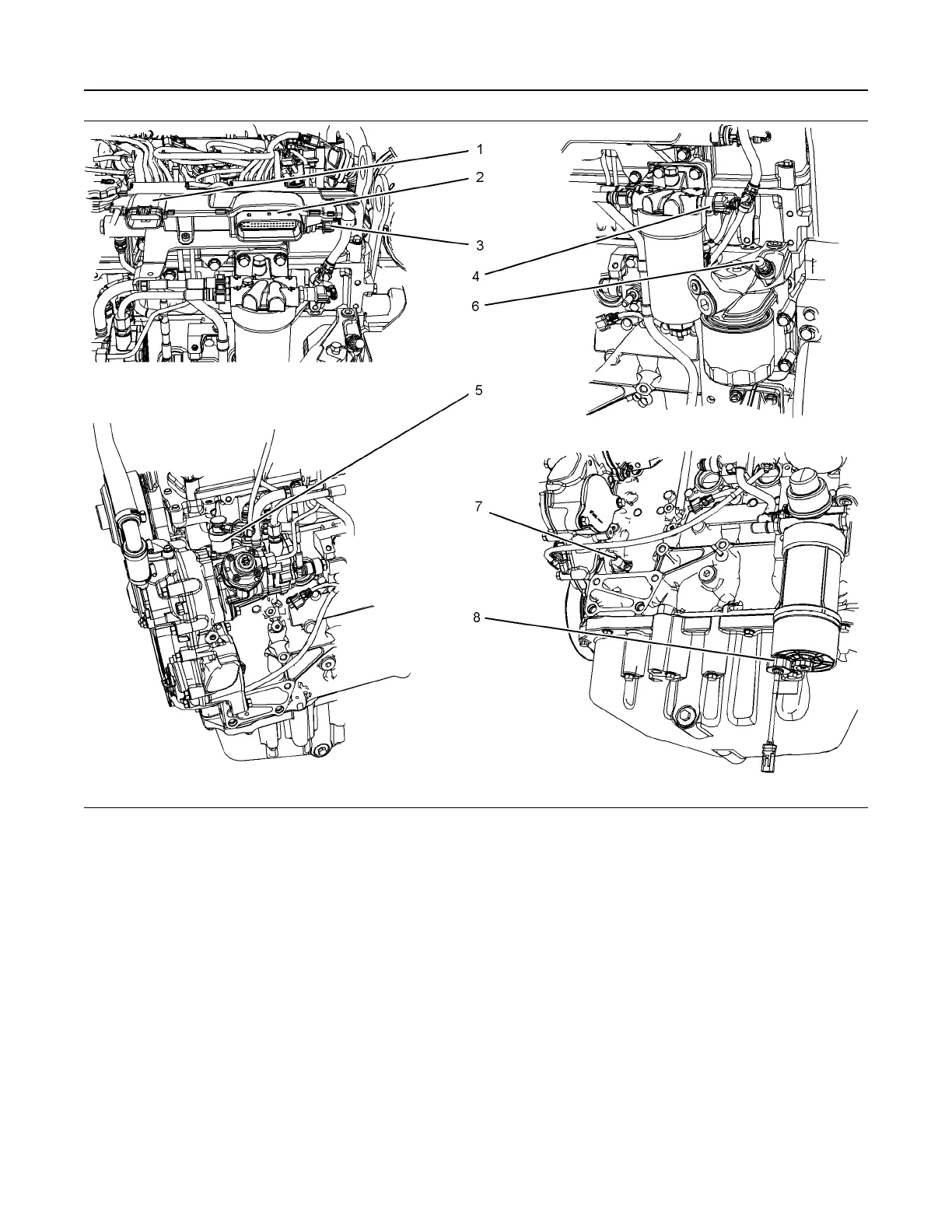

Illustration 8 g02737996
Close up views of the sensor locations on the left side of the engine (typical example)
(1) 10-pin engine interface connector
(optional)
(2) 62-pin engine interface connector
(optional)
(3) Fuel rail pressure sensor
(4) Fuel temperature sensor
(5) High-pressure fuel pump inlet metering
valve
(6) Oil pressure switch
(7) Primary speed/timing sensor (crankshaft)
(8) Water In Fuel (WIF) sensor
14 UENR0612
Electronic System Overview
