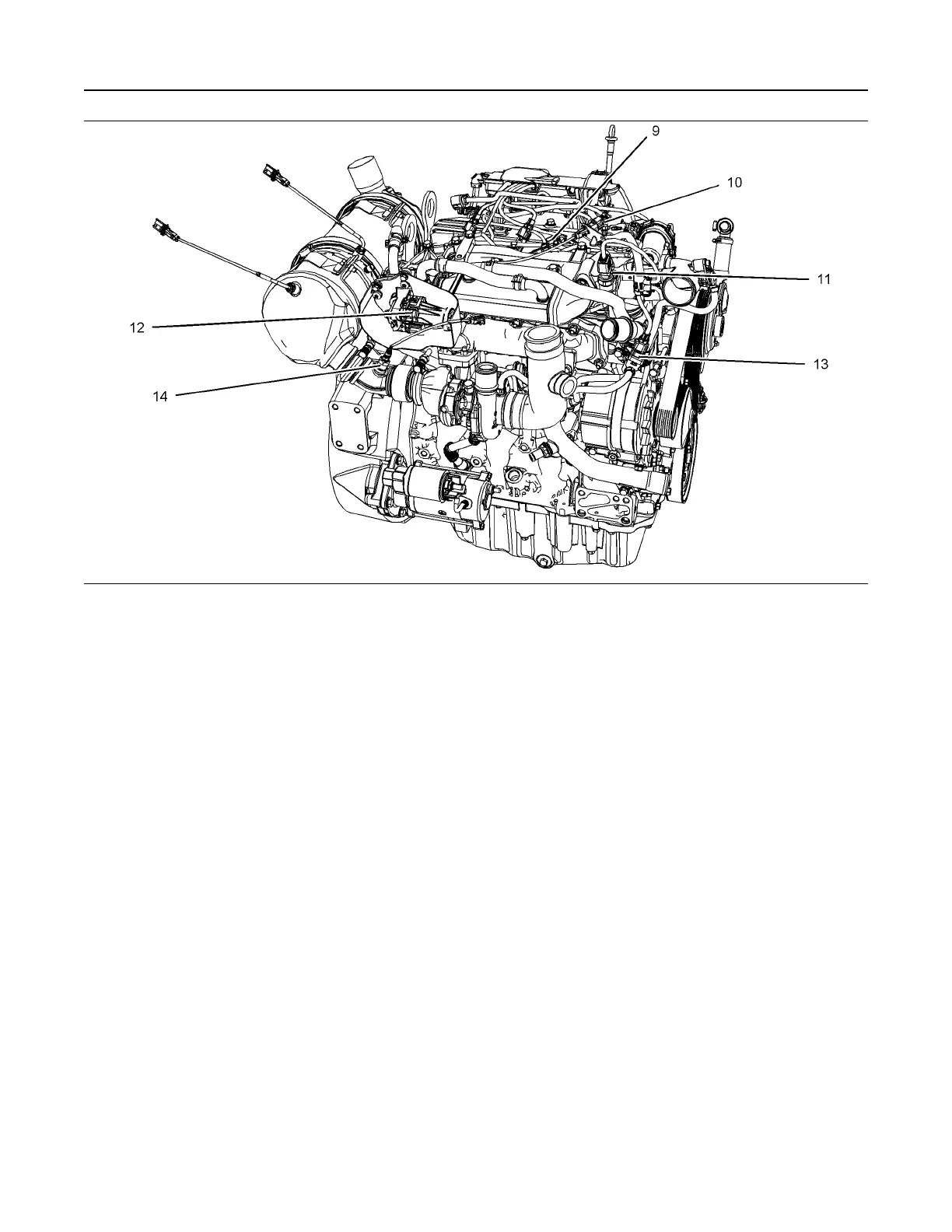

Illustration 9 g02737956
Sensors and electrical connector locations on the right side of the 854E-E34TA (model JR) engine (typical example)
(9) Intake manifold air pressure and
temperature sensor
(10) Exhaust temperature sensor connector
(11) Exhaust gas pressure sensor
(12) NOx Reduction System (NRS) valve
(13) Wastegate regulator
(14) Oxygen sensor
UENR0612 15
Electronic System Overview
