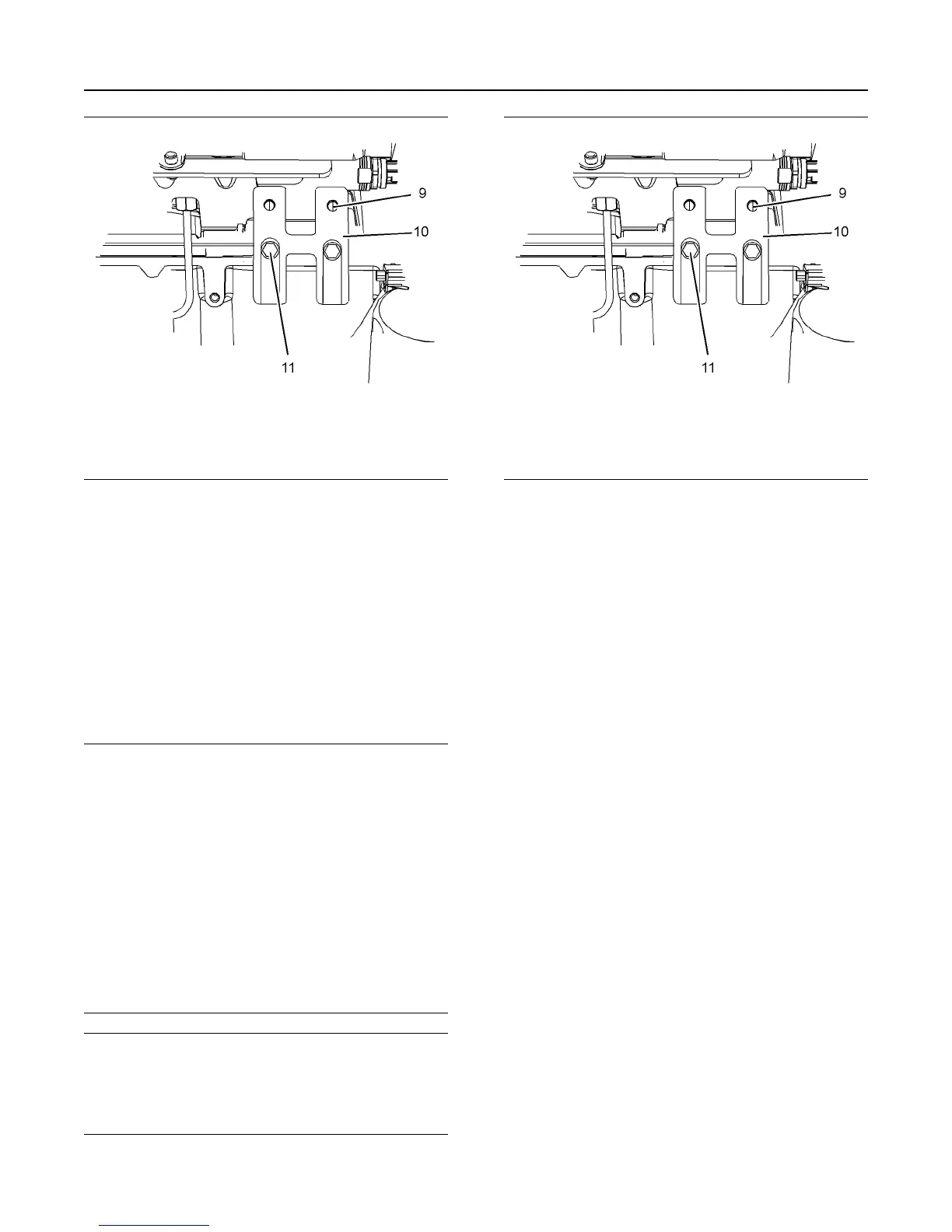

Illustration 7 g03011038
12. If necessary, follow Step 1.c. through Step 12.c. in
order to remove the bracket for secondary fuel
filter.
a. Remove bolts (11) fuel filter bracket (10).
b. Remove fuel filter bracket (10) from the valve
mechanism cover.
c. If necessary, remove studs (9). from fuel filter
bracket (10).
Installation Procedure
NOTICE
Ensure that all adjustments and repairs that are
carried out to the fuel system are performed by
authorized personnel that have the correct
training.
Before beginning ANY work on the fuel system,
refer to Operation and Maintenance Manual, “Gen-
eral Hazard Information and High Pressure Fuel
Lines” for safety information.
Refer to System Operation, Testing and Adjusting,
“Cleanliness of Fuel System Components” for de-
tailed information on the standards of cleanliness
that must be observed during ALL work on the
fuel system.
NOTICE
Ensure that the wiring harness assembly is correctly
routed and the cable straps are not over tightened.
Over tightening of the cable straps will damage the
wiring harness and the convoluting.
Illustration 8 g03011038
1. If necessary, follow Step 1.a. through Step 1.c. in
order to install the bracket for secondary fuel filter.
a. If necessary, install studs (9) to fuel filter
bracket (10). Tighten studs (9) to a torque of
18 N·m (159 lb in).
b. Position fuel filter bracket (10) onto the valve
mechanism cover. Install bolts (11) to fuel filter
bracket (10).
c. Tighten bolts (11) to a torque of 25 N·m
(221 lb in).
10 UENR4503
Disassembly and Assembly Section
