7. Remove throttle valve (8) from studs (9).
8. Remove gasket (6) (not shown).
9. If necessary, remove studs (9). Refer to
Disassembly and Assembly, “Inlet Manifold -
Remove and Install” for the correct procedure.

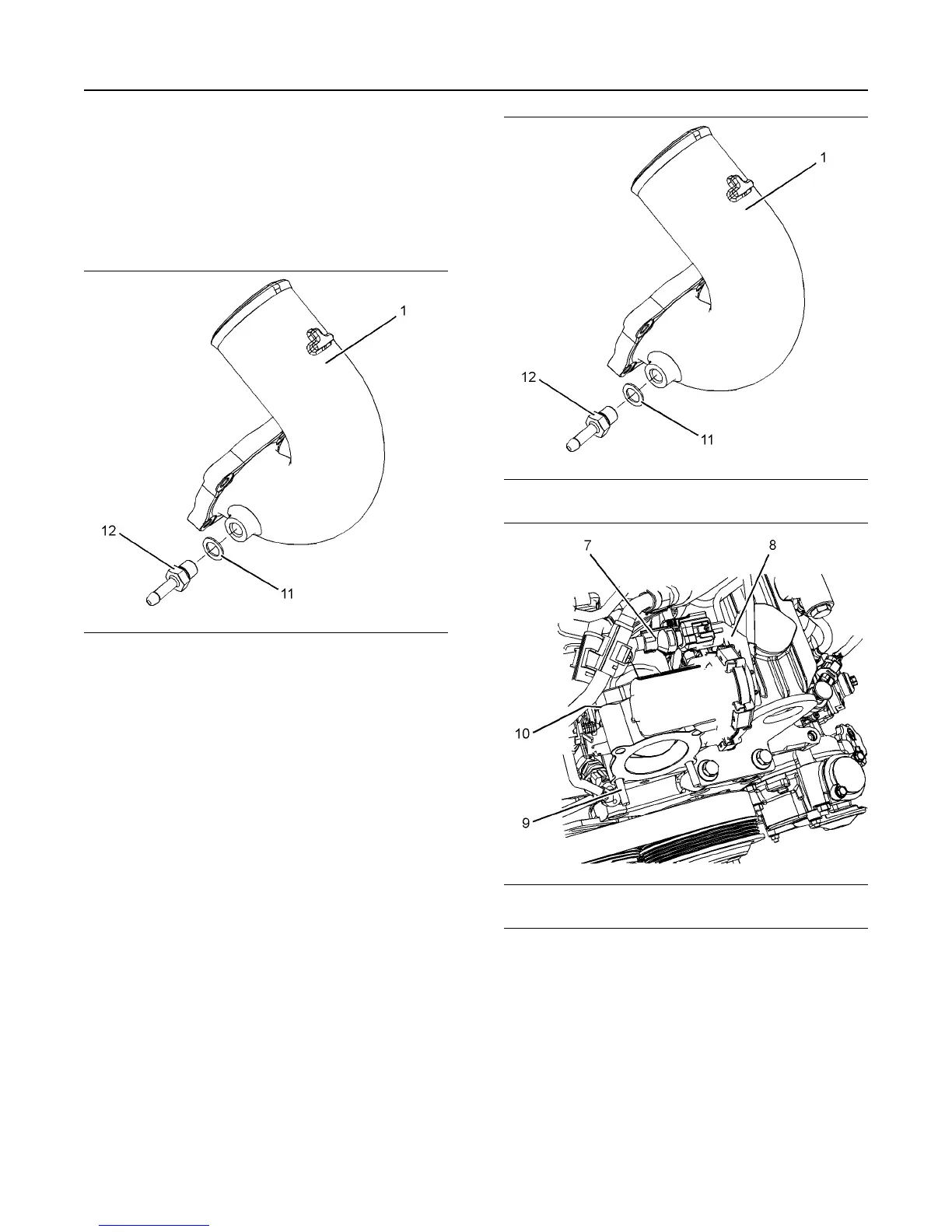

Illustration 33 g02906404
10. If necessary, remove adaptor (12) and sealing
washer (11) from elbow (1).
Installation Procedure
1. Check all components for wear and damage. If
necessary, replace any components that are worn
or damaged.
Illustration 34 g02906404
Illustration 35 g02906317
UENR4503 25
Disassembly and Assembly Section
