9. Connect hose (4) to exhaust cooler assembly (2) in
Position (A). Position hose clamp (3) onto the
coolant inlet.
10. Install hose assembly (8) to exhaust cooler
assembly (2). Position hose clamp (7) and position
hose clamp (10) and tighten securely.
11. If necessary, install the diesel particulate filter
mounting bracket. Refer to Disassembly and
Assembly, “Support and Mounting (CEM) -
Remove and Install” for the correct procedure.
End By:
a. Fill the cooling system with coolant. Refer to
Operation and Maintenance Manual, “Cooling
System Coolant - Change” for the correct
procedure.
i06213414
Throttle Valve (Intake Air) -
Remove and Install
(Rear Facing Inlet Elbow)
Removal Procedure

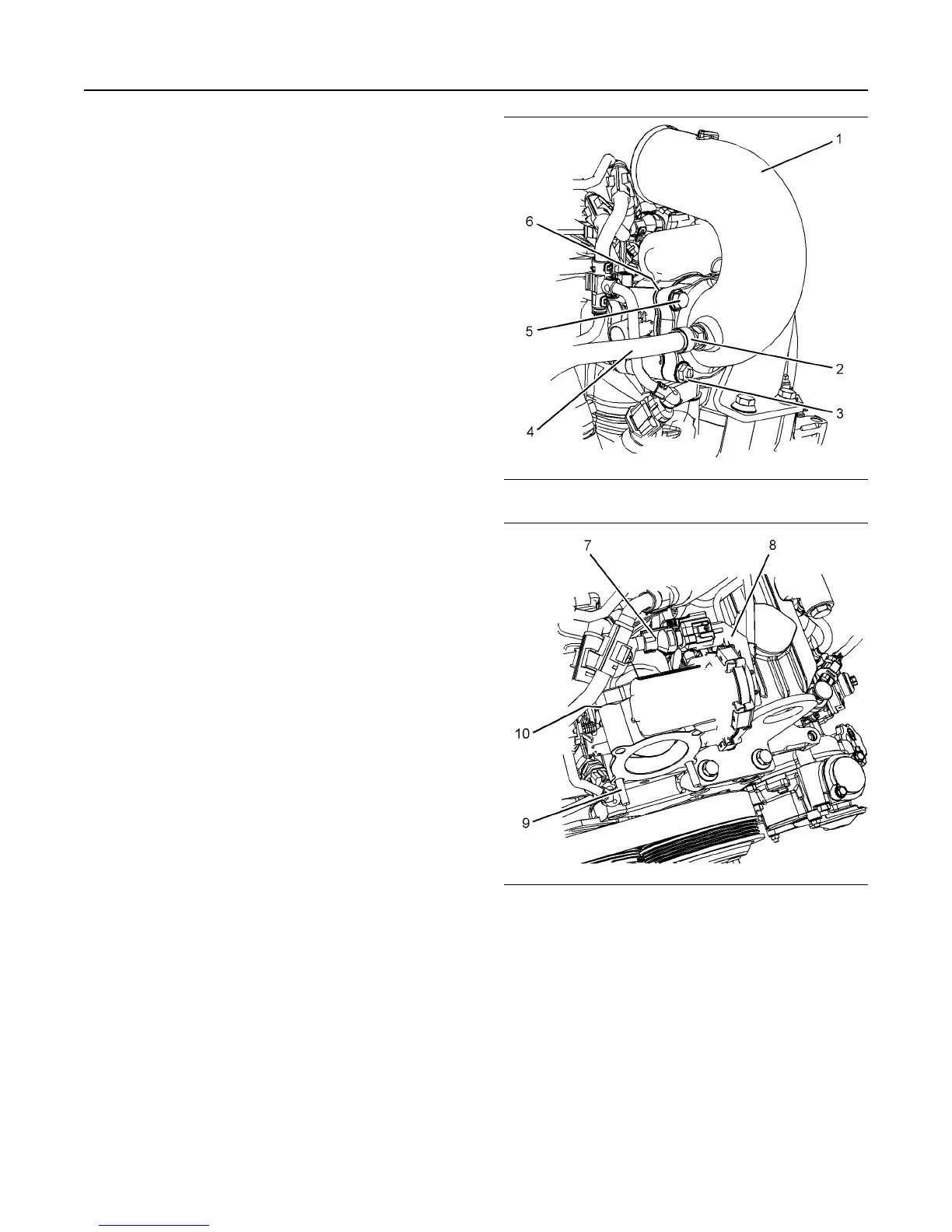

Illustration 31 g02906277
Illustration 32 g02906317
1. Loosen the hose clamp and disconnect the hose
assembly from elbow (1).
2. Slide the locking tab into the unlocked position and
disconnect harness assembly (7) from throttle
valve (8).
3. Loosen hose clamp (2) and disconnect hose
assembly (4) from elbow (1).
4. Remove bolts (5) and remove nuts (3) from the
elbow.
5. Remove the air inlet elbow from studs (9).
6. Remove gasket (6) (not shown).
24 UENR4503
Disassembly and Assembly Section
