N37347 Chapter 2
Page 9
Engine views
Introduction
Perkins engines are built for specic applications and the views that follow do not necessarily match your
engine’s specication.
Location of engine parts

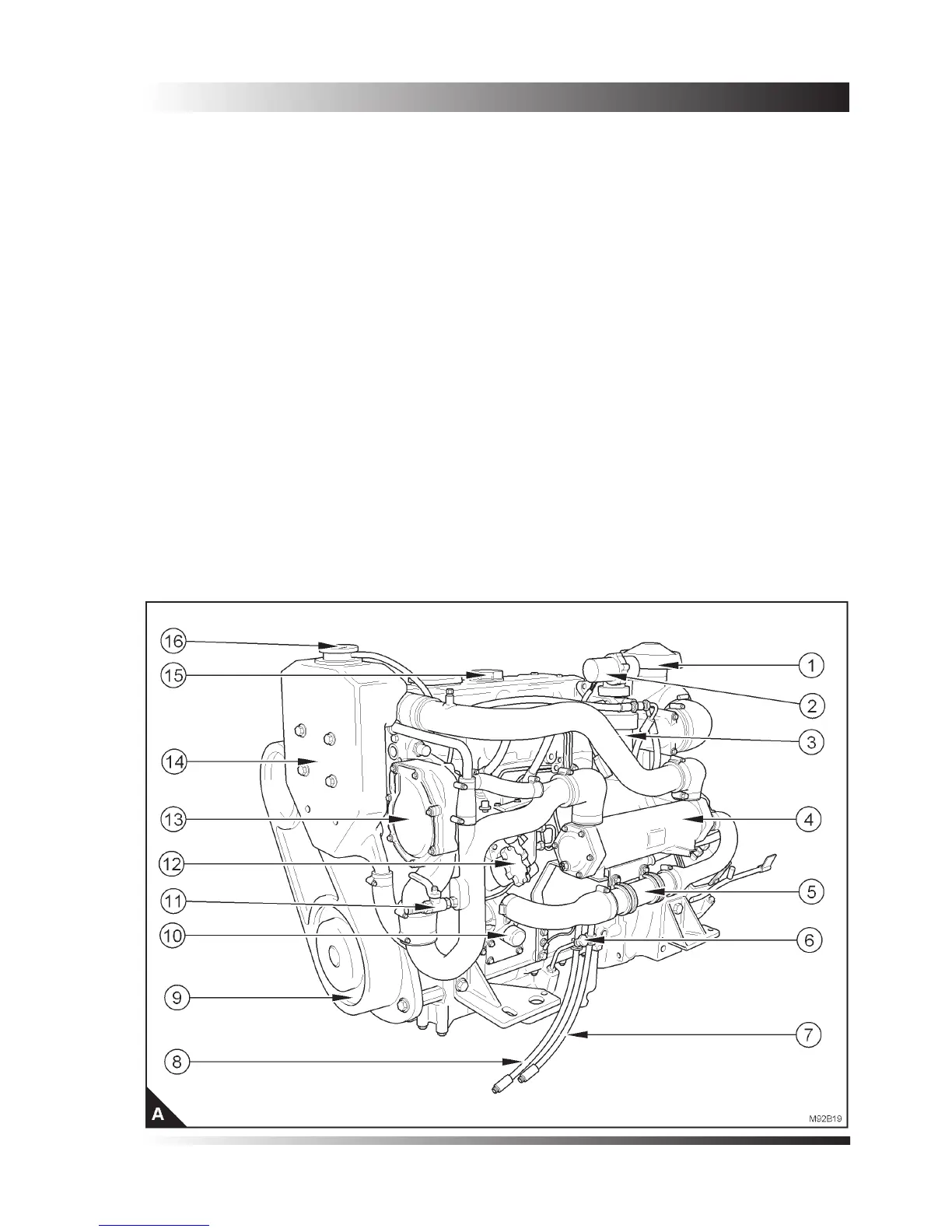

Front and left side view (A) of the engine
1. Air cleaner
2. Electric fuel pump
3. Fuel lter canister
4. Heat exchanger
5. Gearbox oil cooler
6. Dipstick
7. Fuel inlet hose
8. Fuel return hose
9. Belt cover
10. Raw water pump
11. Calorier tting (return)
12. Oil ller cap
13. Fresh water pump
14. Header tank
15. Oil ller cap
16. Fresh water ller cap
