Chapter 3 N37347
Page 12
Basic control panel

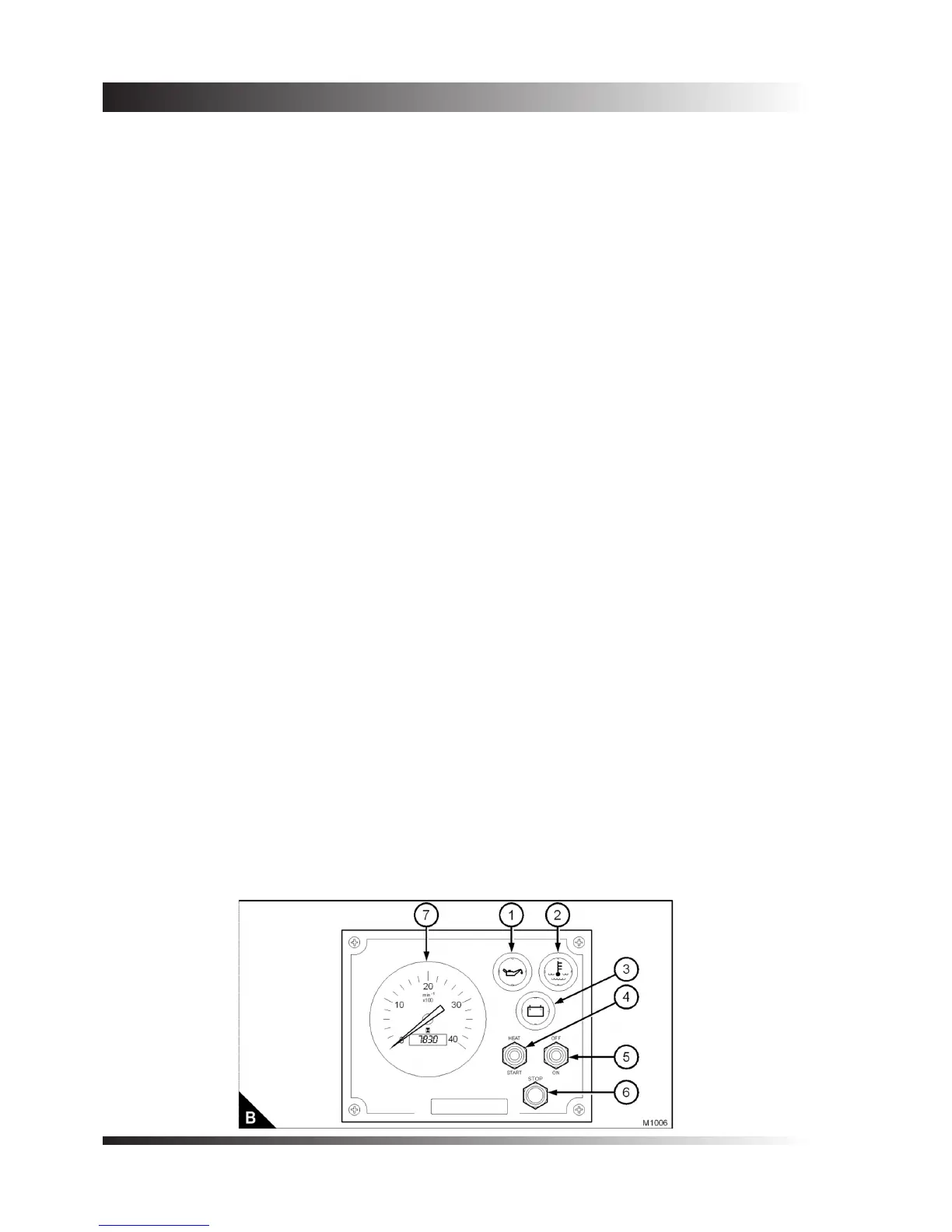

The basic control panel shown in gure (B). The switches are protected from the entry of water, but if the
control panel is in an exposed location, it should be protected by a cover when not in use.
Below is a description of the instrument and switches on the auxiliary panel.
Caution: If the audible warning device operates, the warning light(s) on the relevant main panel will indicate
the engine affected. Reduce the speed of the engine affected to idle and, if necessary, stop the engine.
Audible warning device, which operates if the engine has low lubricating oil pressure or high coolant
temperature.
Engine electrical system / stop switch (B5), which has two positions:
• OFF: Move the switch lever up to switch off the electrical system
• ON: Move the switch lever down to energise the electrical system.
Tachometer (B7) to indicate the engine speed.
Heat / start switch (B4), which is held up to energise the cold start aid (if one is tted), or held down to
energise the starter motor.
Stop button (B6) press the button to stop the engine.
Warning lamp (B3) to indicate that there is no electrical charge from the alternator.
Warning lamp (B2) for high coolant temperature.
Warning lamp (B1) for low lubricating oil pressure.
