3 TECHNICAL DATA
3.1 Data sheet: power supply
3.1.1 Cable construction:
Conductor cross-sectional dimensions: 4 x 0.25 mm
2
Flexible cord construction: Cu ex 32 x Ø 0.1 mm blk
Insulation: PVC Ø 1.3 + 0.05
wall thickness abt. 0.32 mm
Cable covering: PUR / black
3.1.2 Values
Line resistance: 79.9 Ω/km at 20 °C (68 °F)
Safe temperature: static condition: -25 to +70 °C (-13 to 158 °F)
dynamic condition: -5 to +70 °C (23 to 158 °F)
Output load each max. 400 mA, short-circuit proof
 Cableisdragchainqualied,approvedforthesmallestbendingradius60mm.
Power supply 15 to 25 V DC (max. 30 V DC, 5 % residual ripple) must be ap-
plied for at least 2 minutes in order to achieve the correct discharge period!
Typical current consumption 0.2 A (current at make can be up to 1.2 A).
Max. output load (Pin 2 + 4) cannot exceed 400 mA each.
3.2 Productspecications
3.2.1 Pin assignment
Pin assignment cable colour signal
1 brown current +
2 white LED green digital
3 blue current -
4 black LED red digital

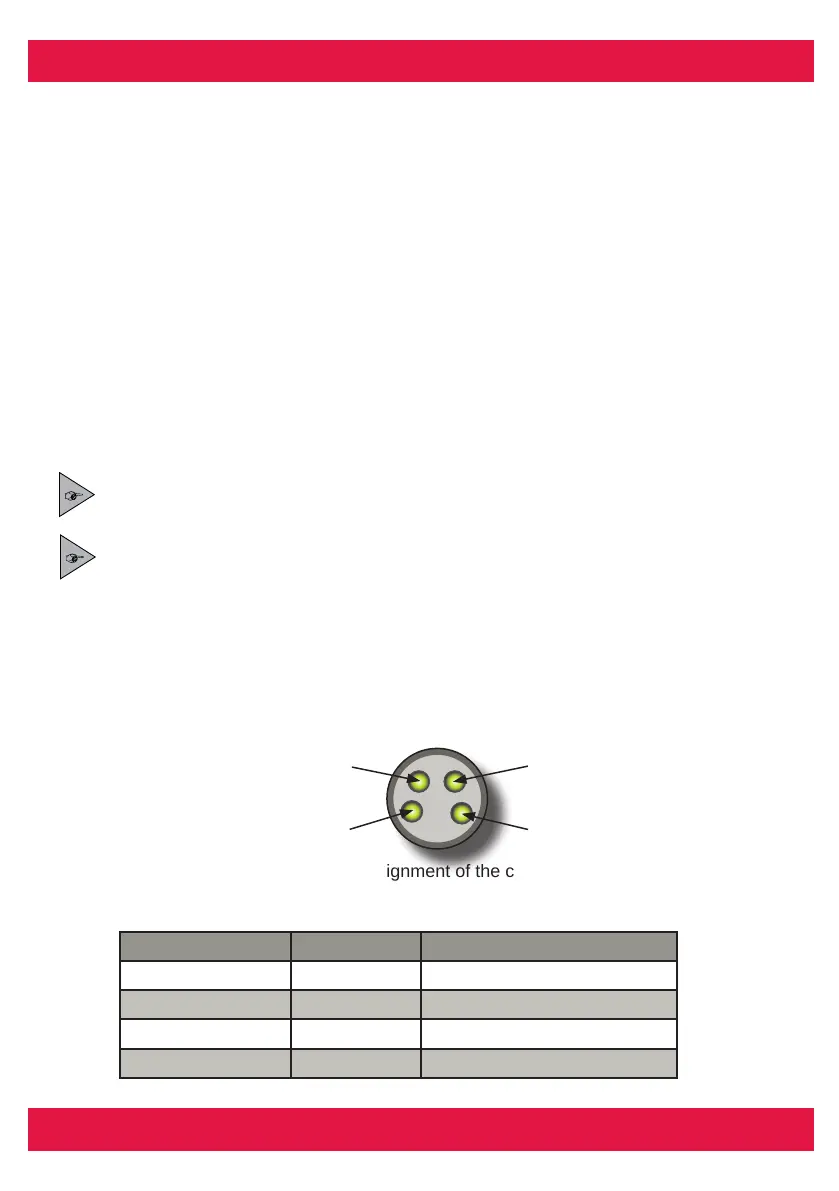

Pin assignment of the connector
on the lubricator
2
1
4
3
