Perma Star Control Time - Function; Reference Table for Discharge Amount Per Discharge Cycle; Weights and Measurements

perma-tec GmbH & Co. KG
- 8 -
The Expert in Lubrication Solutions
3.2.4 Function
Whenever external power is applied, the lubricator discharges a set amount of lubri-
cant in pre-determined intervals.
In the LC unit, a motor driven spindle pushes the lubricant out of the LC unit. The
piston will move and, depending on the counter pressure, will build up pressure in
the LC unit of up to 5 bar (75 psi). The automatic pressure shut off will turn the
system OFF after several attempts when the pressure exceeds 5 bar.
With dip switch 3 and 4 of the 4-way code switch on the circuit board (marked “VOL”)
you can set the size of the LC unit. With dip switch 1 and 2 (marked “TIME”) you can
set the discharge amount for every 100 operating hours.
perma STAR CONTROL TIME divides the set discharge amount (= size of the LC
unit) into several small discharge cycles within the discharge period (please see the
following chart listing discharge amount per discharge cycle. Please also refer to
chapt. 7.3).

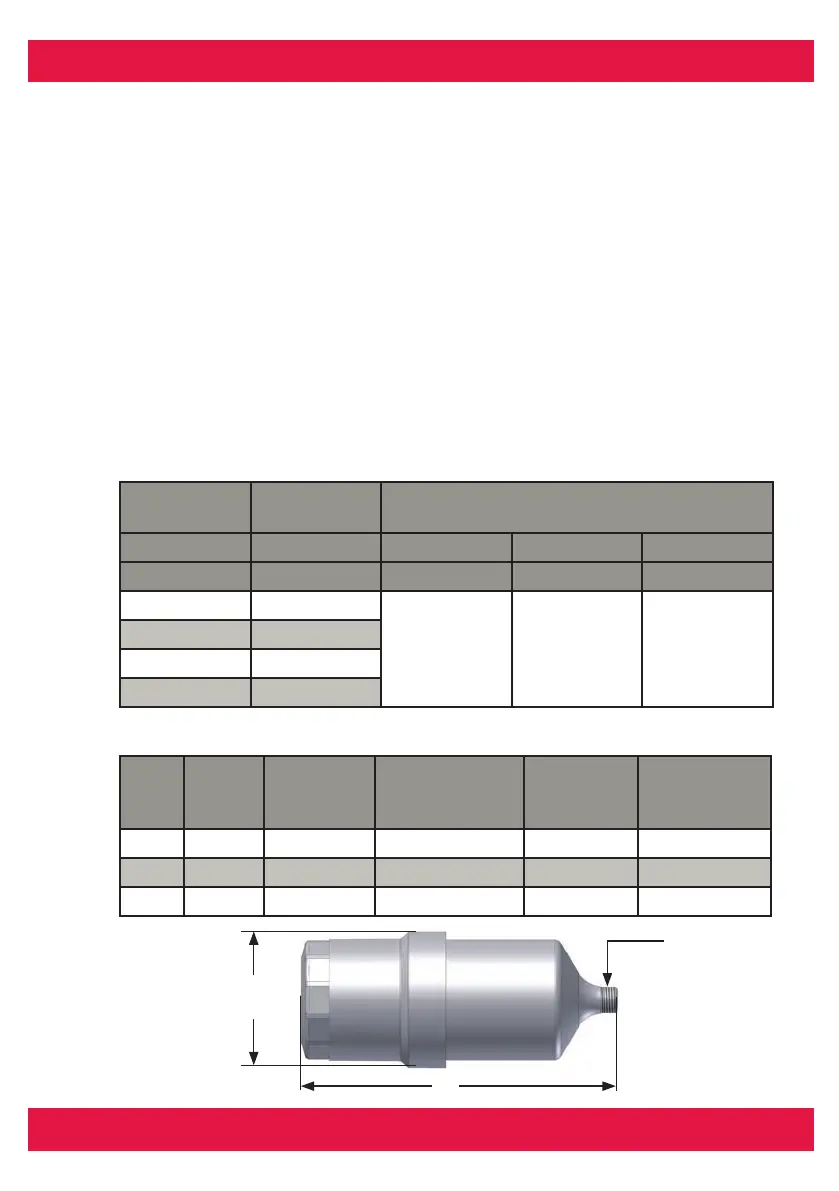

3.2.5 Reference table for discharge amount per discharge cycle
Type Volume
[cm
3
]
Diameter
D [mm]
Total lenght
L [mm]
Weight
empty [kg]
Weightlled
with SF01
[kg]
S60 60 71 142 0.344 ≈ 0.400
M120 120 71 165 0.358 ≈ 0.470
L250 250 71 215 0.399 ≈ 0.632
R 1/4
L
D
Drive LC unit
3.3 Weights and measurements
Discharge
period
Pause time Discharge amount per discharge cycle
S60 M120 L250
[Months) [h:min] [cm
3
] [cm
3
] [cm
3
]
1 1:30
0.13 0.26 0.53
3 4:37
6 9:17
12 18:36
