22
4G LTE-FDD Frequency: B1(2100) B3(1800) B5(850) B8(900) B28(700)
Bandwidth: Max 10Mbps (DL) Max 5Mbps (UL)
3G HSPA+ Frequency: B1(2100) B5(850) B8(900)
Bandwidth: Max 42Mbps (DL) Max 5.76Mbps (UL)
Antennas 2 antennas for Cellular (MIMO) + 1 for Wi-Fi
WIFI Capability Supports: IEEE 802.11b/g/n
Frequency: 2.4GHz
Ethernet Specs Ports: 3 x RJ-45 port
Physical layer: 10/100Base-T
Data rate: 10/100 Mbps
Interface: Auto MDI/MDIX
Routing/Failover IP pass-through; NAT, NAPT with IP Port Forwarding;
DHCP; DNS Client and Server
Failover Automatic failover/ failback to second cellular SIM, Wi-Fi or Ethernet.
Management Remote configuration via Atlas web portal
Data Modem 2400 baud modem for alarm panel remote upload / download
Serial Port High Speed RS232 interface for serial connection to alarm and access control
panels.
Auxiliary Input 3 x 24Hr inputs state change detected every second EOL 3.3K
Auxiliary Output 3 x Open Collector outputs @ 50mA (max). Function control using Atlas web
portal and/or Pocket Secure app.
Dimensions 110mm (h) x 25mm (d) x 80mm (w)
Weight 180g
Power 10 to 15V DC
Consumption Idle 0.12A @13.8V DC
Transmitting: 0.35A @ 13.8V DC

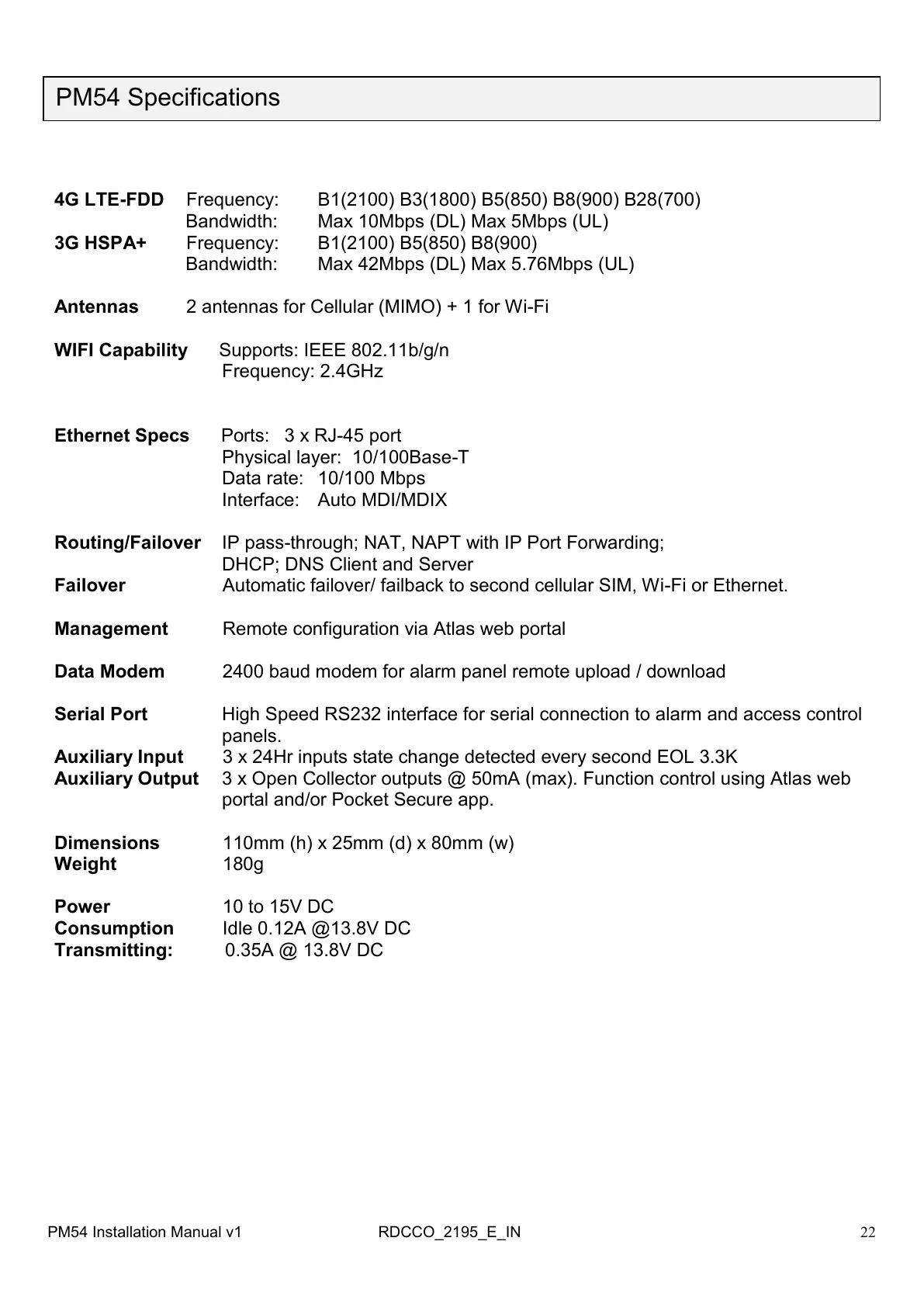

PM54 Specifications
PM54 Installation Manual v1 RDCCO_2195_E_IN
