Outputs
There are three (3) outputs available.
 Outputs are ‗Open Collector‘ @50mA switching 12vDC negative—for heavier loads a re-
lay must be used.
 Ensure there is a common negative between the PM54 and the device being switched.
 The outputs can be opened, closed or pulsed using the Atlas web portal
 The outputs can only be pulsed when using the Pocket Secure App.
 Refer to the technical addendums for detailed key switch information.
www.permaconn.com / Installer Zone / Technical Addendums
Device Outputs
Compatible with ‗Pocket Secure‘ remote control App. Available on the Apple,
Google Play and Windows store

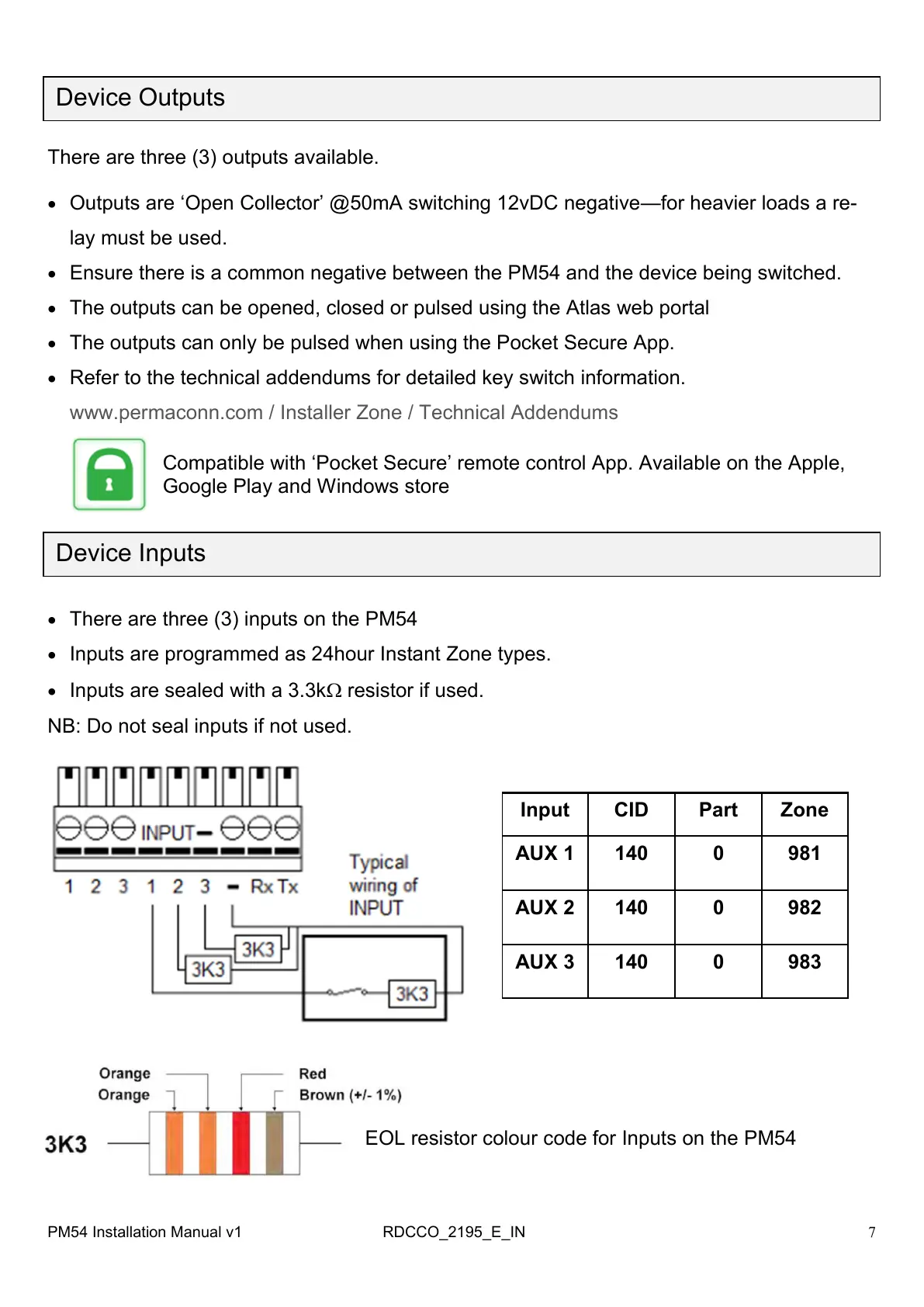

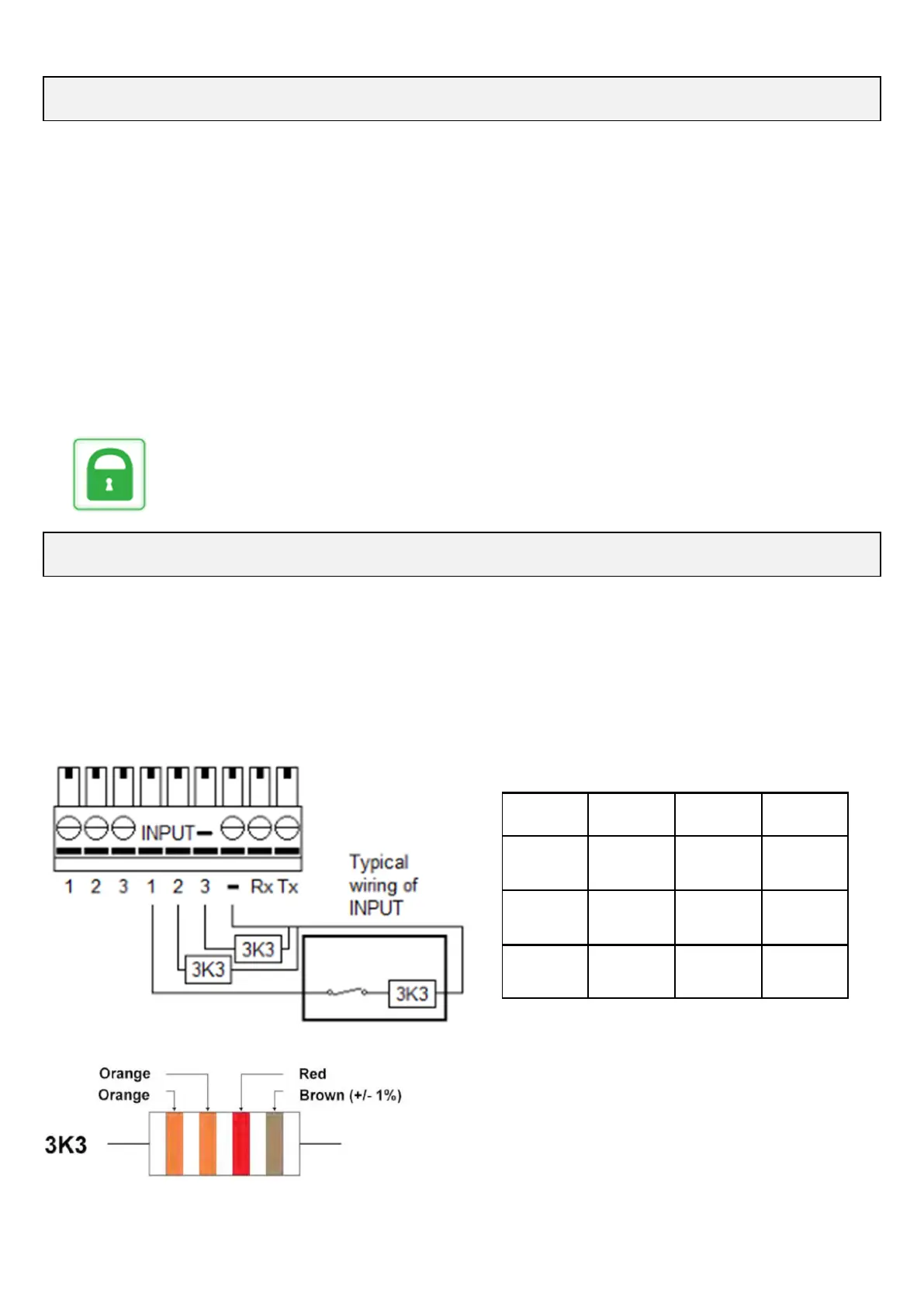

Device Inputs
 There are three (3) inputs on the PM54
 Inputs are programmed as 24hour Instant Zone types.
 Inputs are sealed with a 3.3k resistor if used.
NB: Do not seal inputs if not used.
Input CID Part Zone
AUX 1 140 0 981
AUX 2 140 0 982
AUX 3 140 0 983
PM54 Installation Manual v1 RDCCO_2195_E_IN
EOL resistor colour code for Inputs on the PM54
