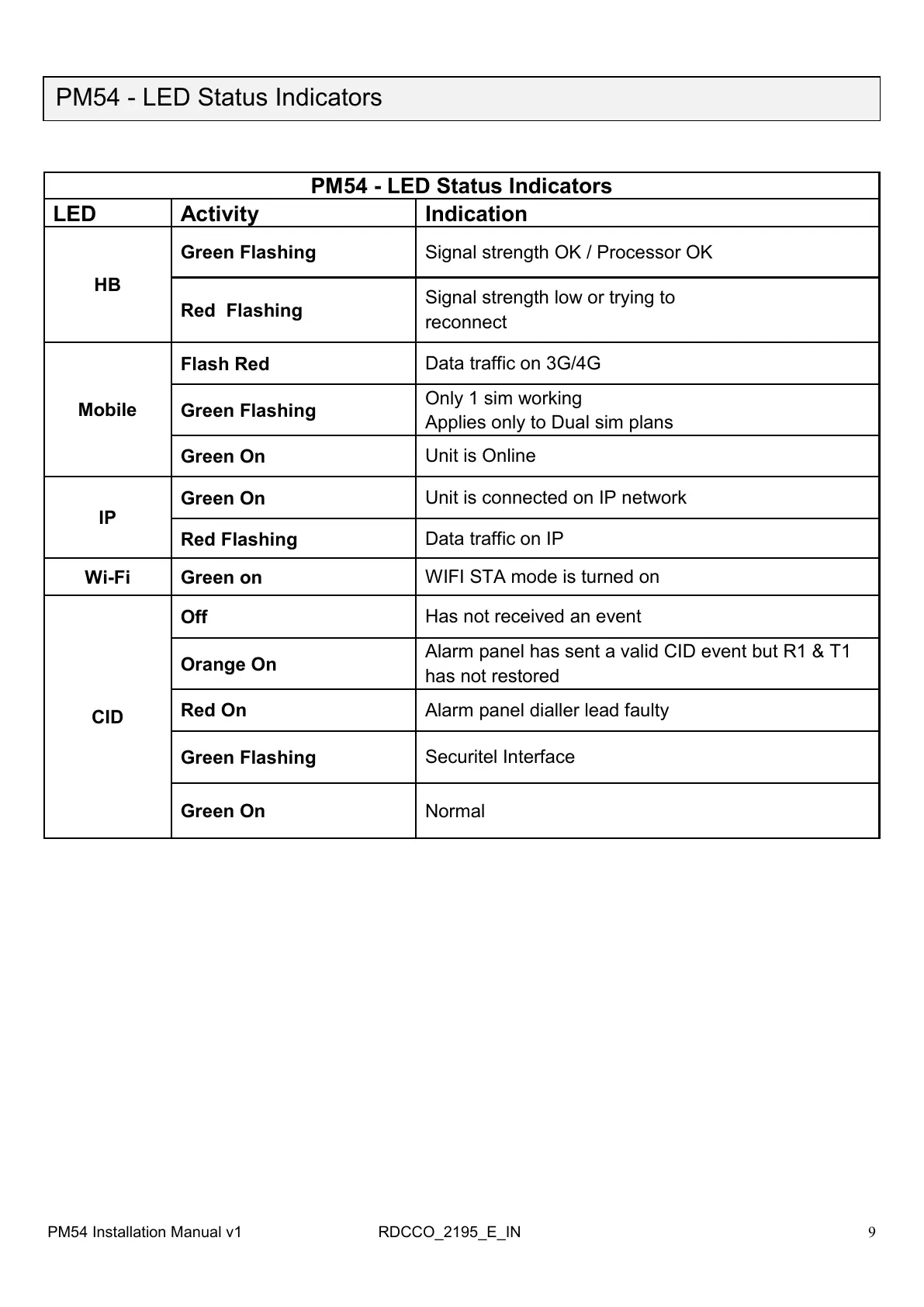

PM54 - LED Status Indicators
PM54 - LED Status Indicators
LED Activity Indication
HB
Green Flashing
Signal strength OK / Processor OK
Red Flashing
Signal strength low or trying to
reconnect
Mobile
Flash Red
Data traffic on 3G/4G
Green Flashing
Only 1 sim working
Applies only to Dual sim plans
Green On
Unit is Online
IP
Green On
Unit is connected on IP network
Red Flashing
Data traffic on IP
Wi-Fi Green on
WIFI STA mode is turned on
CID
Off
Has not received an event
Orange On
Alarm panel has sent a valid CID event but R1 & T1
has not restored
Red On
Alarm panel dialler lead faulty
Green Flashing
Securitel Interface
Green On
Normal
PM54 Installation Manual v1 RDCCO_2195_E_IN
