PM54 Installation Manual v1 RDCCO_2195_E_IN

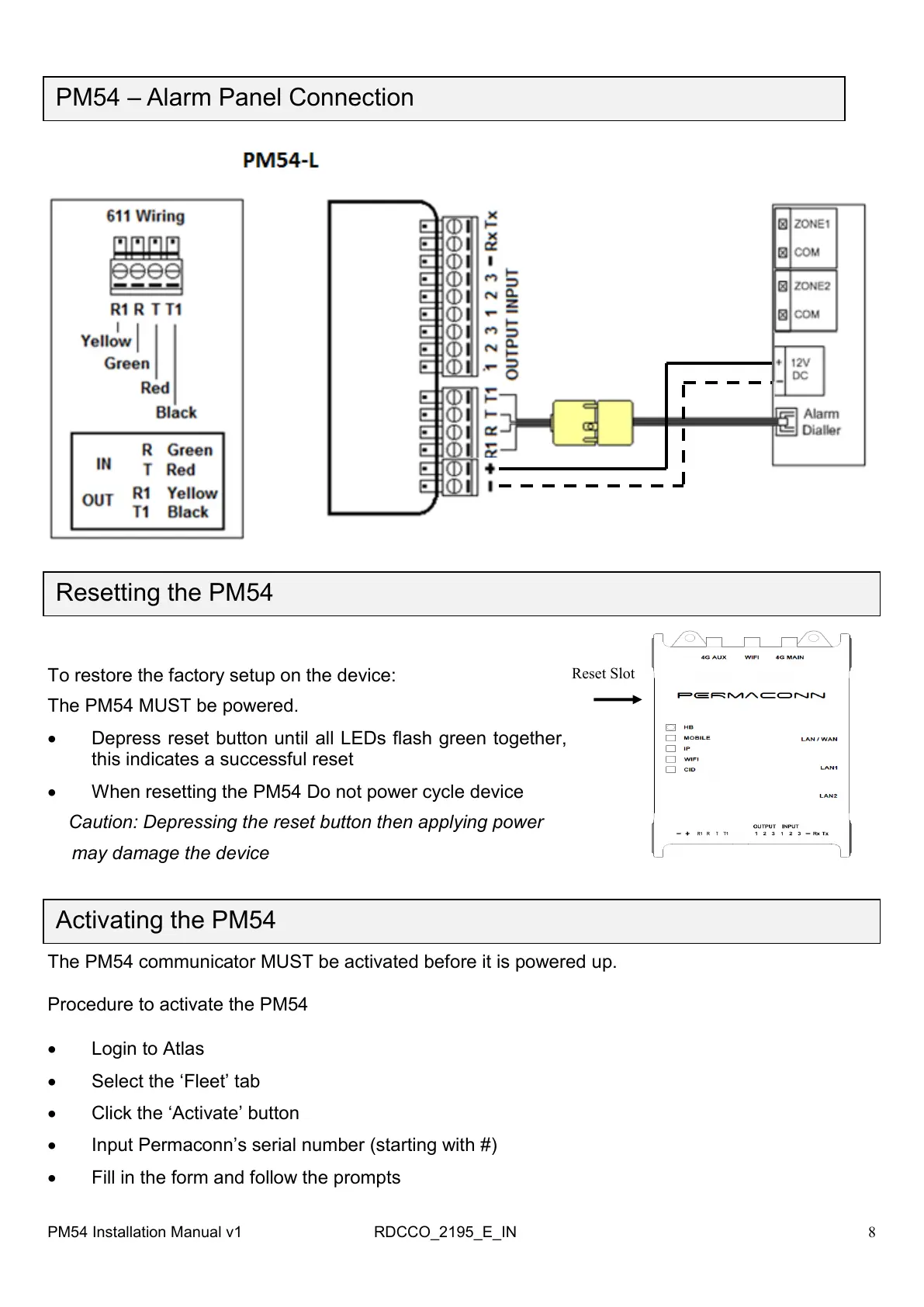

PM54 – Alarm Panel Connection
Resetting the PM54
To restore the factory setup on the device:
The PM54 MUST be powered.
 Depress reset button until all LEDs flash green together,
this indicates a successful reset
 When resetting the PM54 Do not power cycle device
Caution: Depressing the reset button then applying power
t may damage the device
Reset Slot
Activating the PM54
The PM54 communicator MUST be activated before it is powered up.
Procedure to activate the PM54
 Login to Atlas
 Select the ‗Fleet‘ tab
 Click the ‗Activate‘ button
 Input Permaconn‘s serial number (starting with #)
 Fill in the form and follow the prompts
