Permobil Joystick Module for R-net
Power, mode and profile paddle

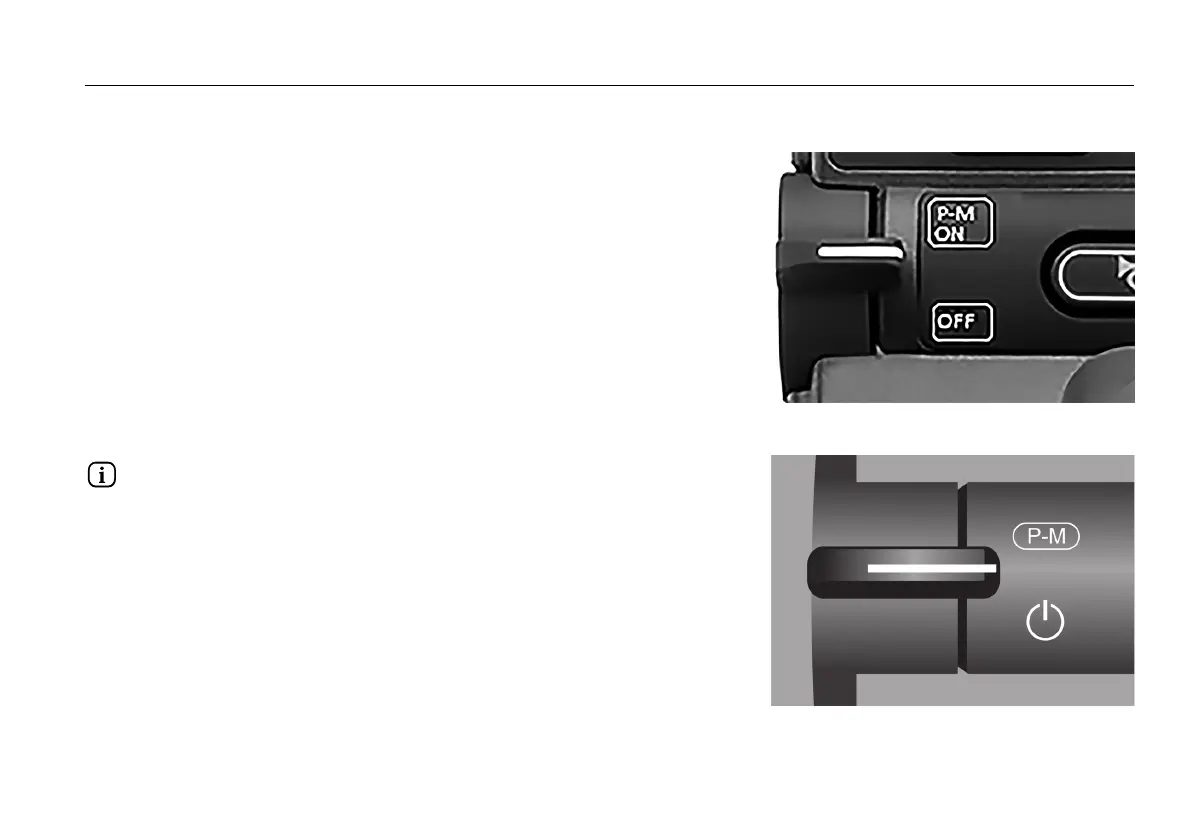

Figure 104. Power, mode and profile paddle.
The paddle switch is used to switch the control system on or off.
Push the paddle forward to switch the power on and pull it
backwards to switch the power off.
The paddle switch can also be used to scroll through the available
profiles and modes. Push the paddle forward to scroll through the
available profiles and modes.
Figure 105. Power, mode and profile paddle switch,
early version.
If your panel is equipped with an early version of the toggle switch
as shown in figure 105, follow the description below.
Pull on the paddle switch to switch the power on or off.
The paddle switch can also be used to scroll through the available
profiles and modes. Push the paddle forward to scroll through the
available profiles and modes.
