M1
Settings and adjustments

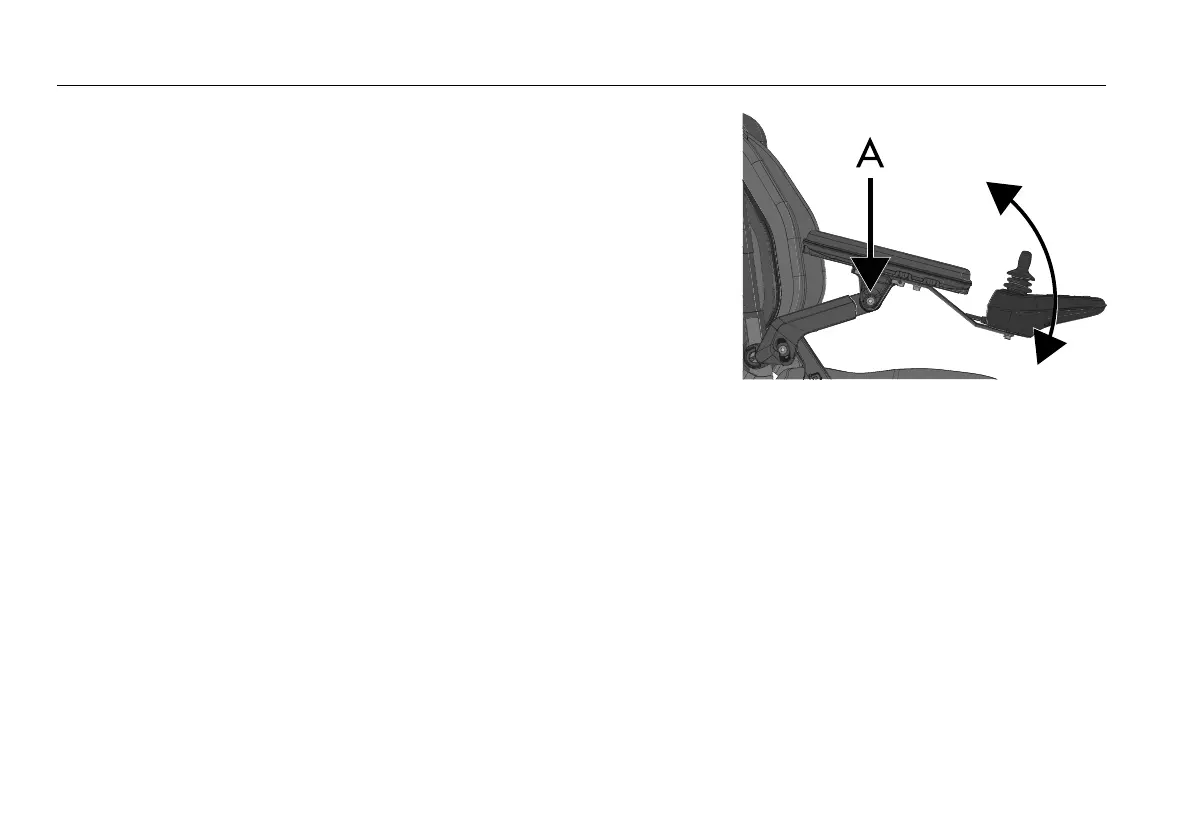

Figure 47. Armrest angle adjustment.
The armrest angle can be adjusted for maximum comfort.
1. Loosen the screw (A).
2. Adjust the armrest to the required angle.
3. Tighten the screw (A) using a torque wrench. Tightening
torque: 7.23 lb.ft.
Armrest pad position
The following items are necessary for this task:
• Torque wrench.
• Allen key socket, 5 mm.
86
