Settings and adjustments
Manual leg rest
Manual leg rest angle

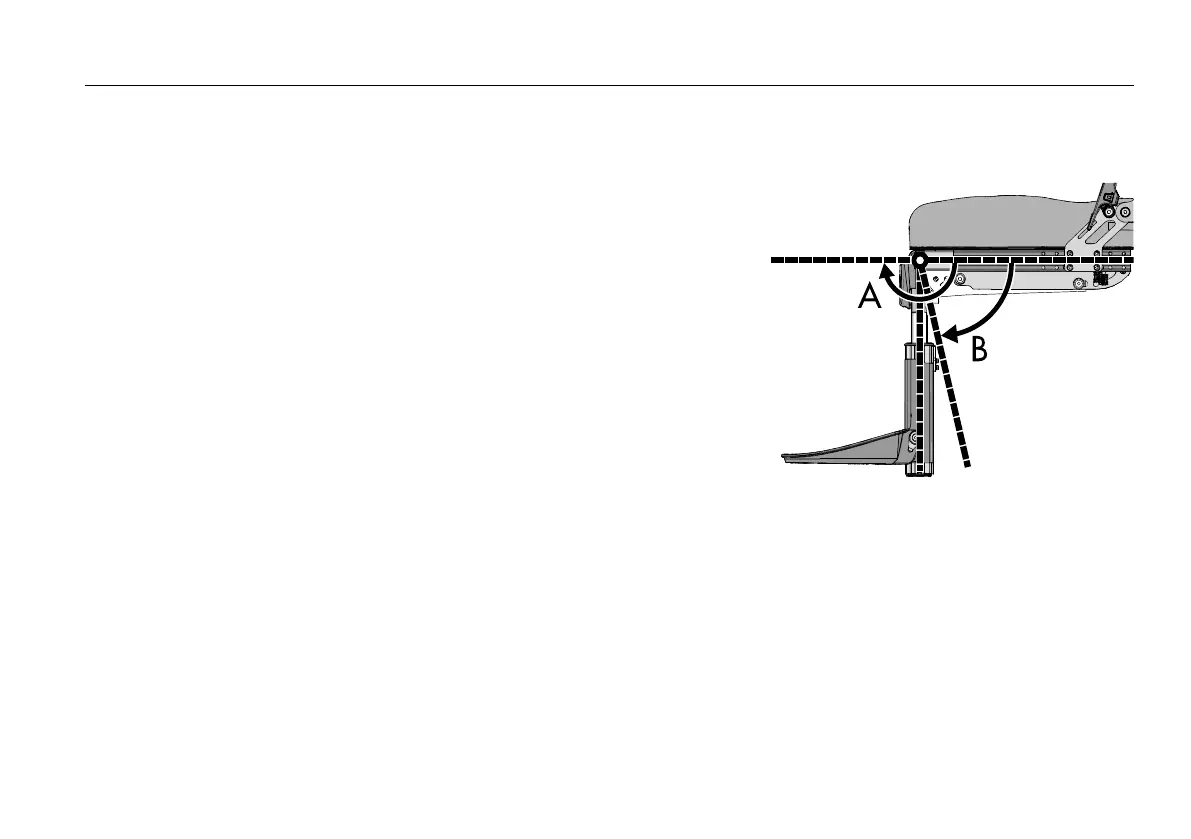

Figure 52. Maximum and minimum adjustment limits.
The leg rest can be adjusted and locked in a number of fixed
positions. A seat depth between 20” and 22” allows leg rest angles
from 80° (B) to 135° (A). With a seat depth between 14” and 19”,
the leg rest angle (B) will be limited by the front cover to 87.5°.
