Settings and adjustments

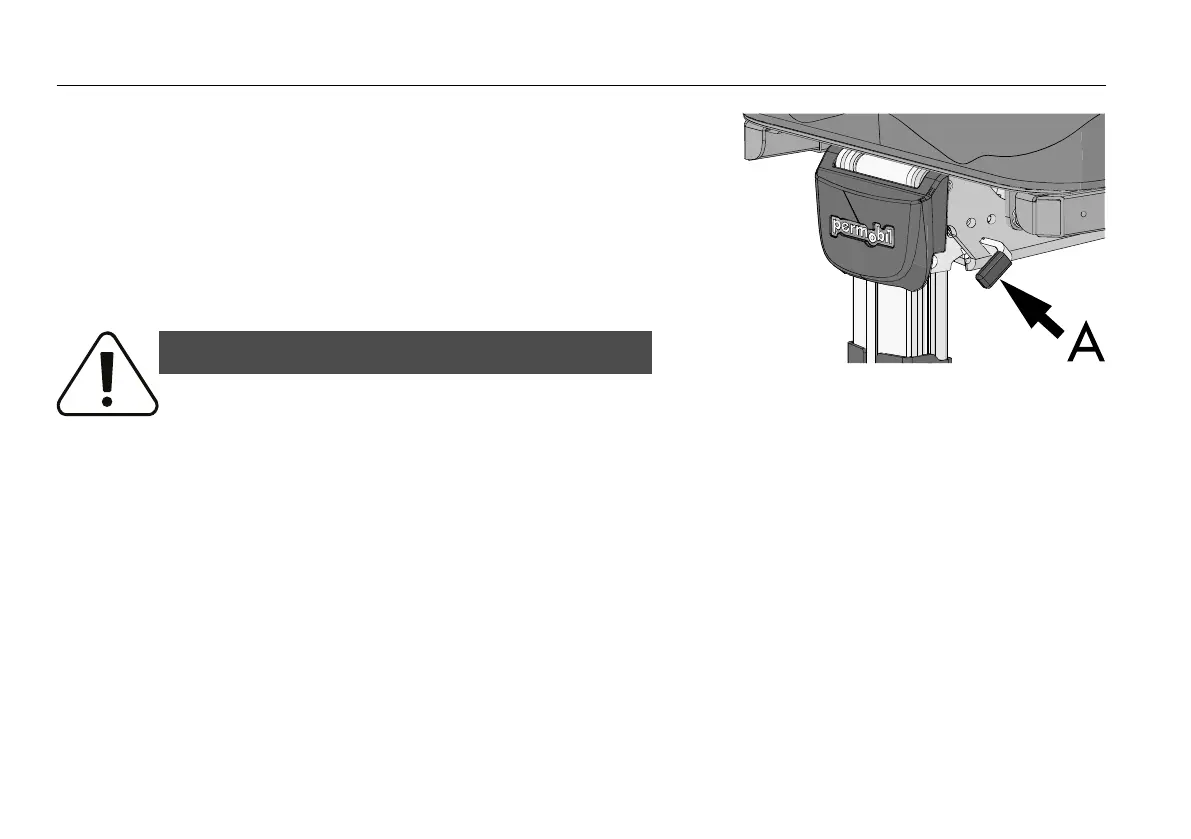

Figure 53. Release the lock lever (A) to manually adjust
the leg rest angle.
The following steps describe manual adjustment of the leg rest angle.
1. Release the leg rest by pulling out the lock lever (A).
2. Hold the lock lever and adjust the leg rest angle to the required
angle.
3. Release the lock lever (A).
4. Check that the lock lever has returned to its locked position.
WARNING!
Risk of pinching while adjusting leg rest angle
Do not put weight on the leg rest while adjusting the angle. There is a risk of
pinch-point accidents.
Leg rest length
The following items are necessary for this task:
• Torque wrench.
• Allen key socket, 3 mm.
