Permobil M1 - Page 93

M1
Settings and adjustments

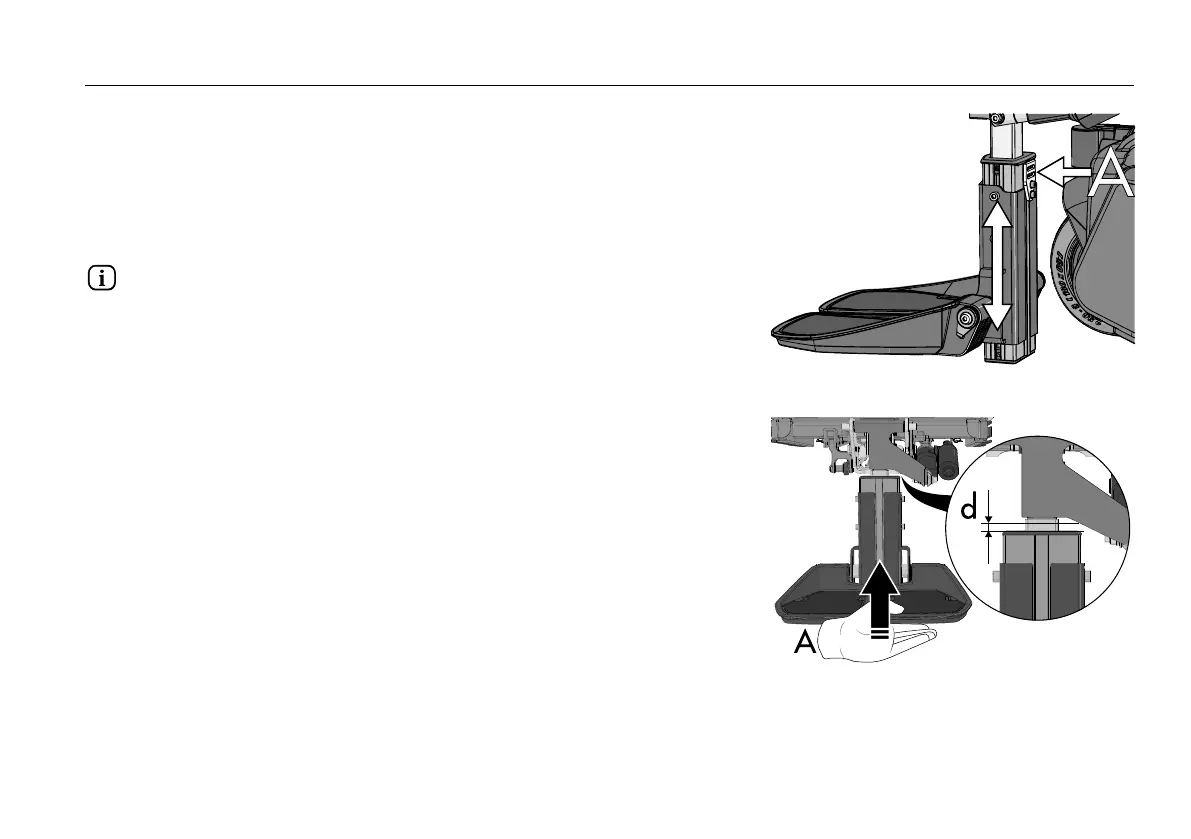

Figure 54. Adjusting leg rest length.
The length of the leg rest profile can be adjusted by a strap on the
back.
1. Loosen the two screws holding the web belt bracket (A).
2. Release the web belt (A) on the back of the leg rest.
3. Move the leg rest to the inner end position.
Make sure that the outer profile does not touch or collide with the
actuator arm. If so, loosen the web belt on the back of the outer
profile and continue the leg rest to the inner end position.
Figure 55. Adjust the web belt.
4. Push up the outer profile to which the footplates (A) are
installed. Adjust the web belt until the distance (d) is
0.08” – 0.39” between the outer profile and the actuator arm.
5. Tighten the web belt.
6. Run the leg rest to vertical position and back to inner end
position.
7. Check the distance (d).
8. Tighten the screws. Tightening torque: 2.1 lb.ft.
9. Check that the footplates are fully secured.
93
