M1
Settings and adjustments
CAUTION!
Ensure clearance for the caster wheels
Make sure that there is clearance between the leg rests and the caster
wheels, and the footplates and the caster wheels. If you do not pay
attention to this clearance, the leg rests, footplates, and caster wheels can
be damaged.
When the wheelchair has been driven in reverse, the caster wheels
will turn and face the opposite direction.
Swing away leg rest angle
The following items are necessary for this task:
• Torque wrench.
• Allen key socket, 5 mm.

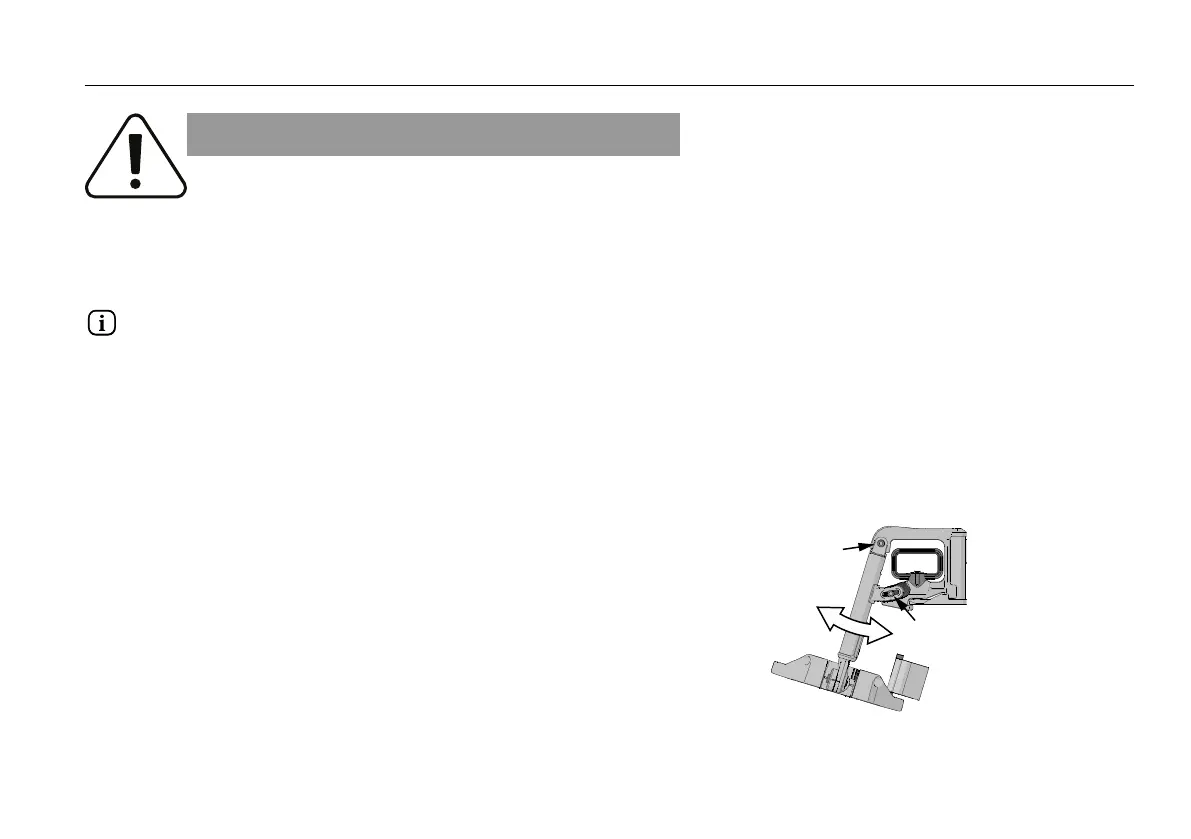

Figure 56. Swing away leg rest angle adjustment.
1. Release the leg rest by loosening the screws (A) and (B).
2. Adjust the leg rest angle to desired position.
3. Tighten the screws (A) and (B). Tightening torque: 7.2 lb.ft.
4. Check that the leg rest are fully secured.
95
