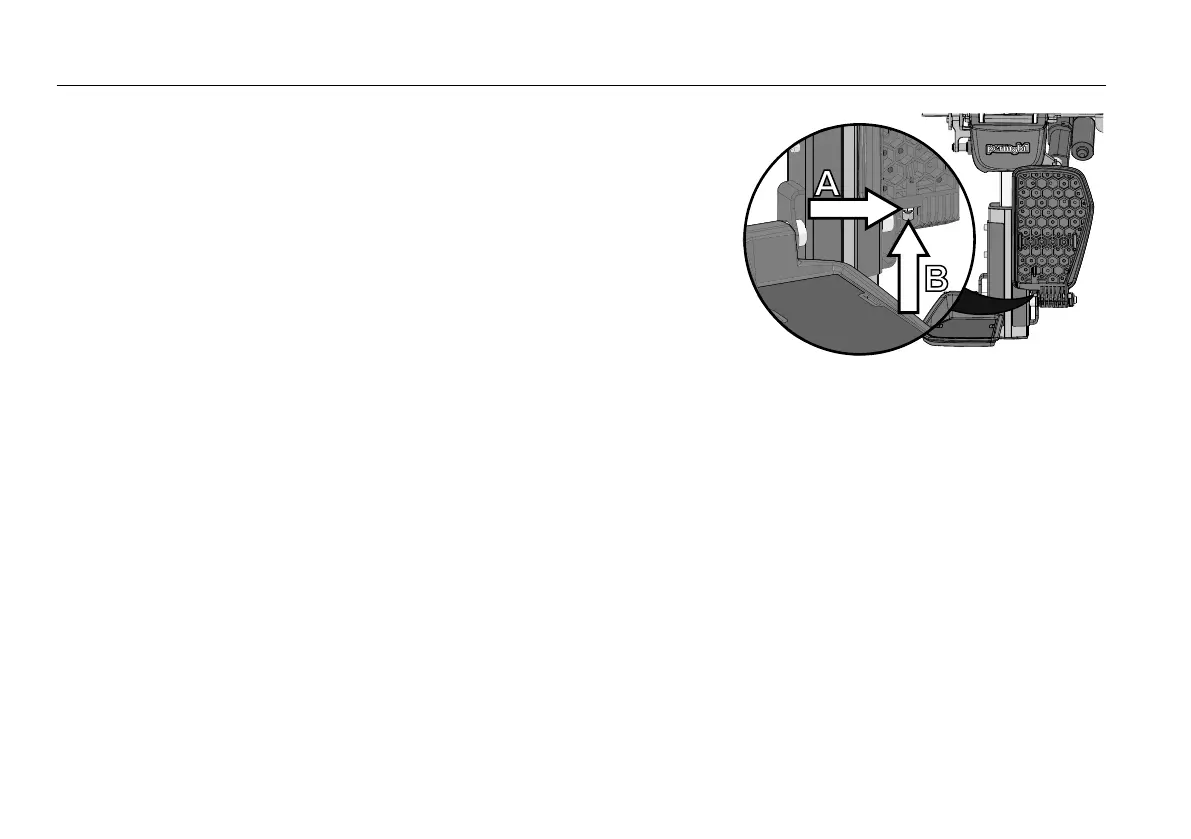

Figure 58. Adjusting footplate angle stop screw.
The angle of the footplates is adjusted using the stop screws under
each footplate.
1. Tilt up the footplate.
2. Loosen the lock nut (A).
3. Set to the required angle by adjusting the stop screw (B) in or
out.
4. Lock the stop screw in the required position by fastening the
lock nut (A).
Footplate height
The following items are necessary for this task:
• Torque wrench.
• Allen socket, 5 mm.
