Settings and adjustments

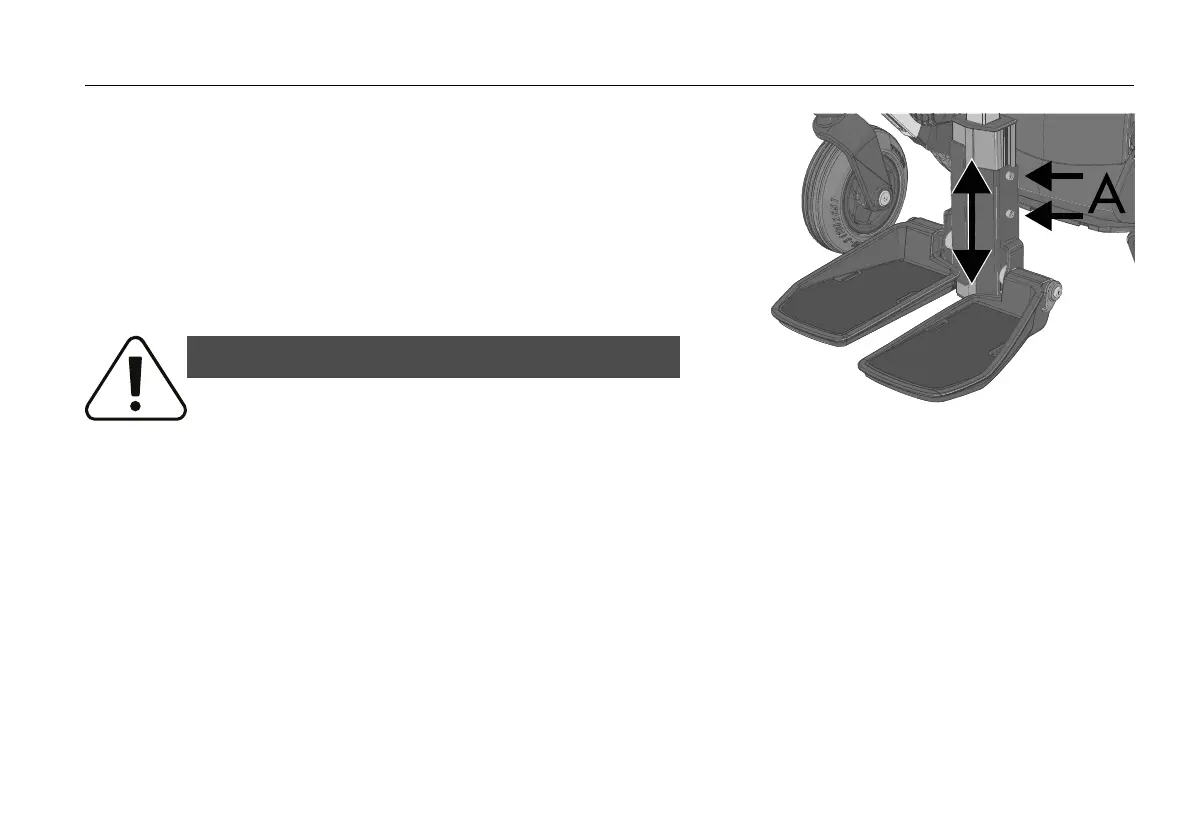

Figure 59. Adjusting footplate height.
Footplate height is adjustable individually and steplessly.
1. Loosen the two screws (A).
2. Adjust the footplate bracket to the required height.
3. Secure by fastening the two screws (A).
Tighten the screws. Tightening torque: 7.23 lb.ft.
4. Check that the footplate is fully secured.
WARNING!
Ensure adequate footplate clearance
After footplate adjustment and with the seat in an upright position, ensure
there is at least 1” clearance between the ground and the footplate at all
times when moving the leg rest in or out. Perform this test first without the
user sitting in the wheelchair and again with the user sitting in the
wheelchair with his or her feet on the footplates.
