Cab, Instruments and Controls
42

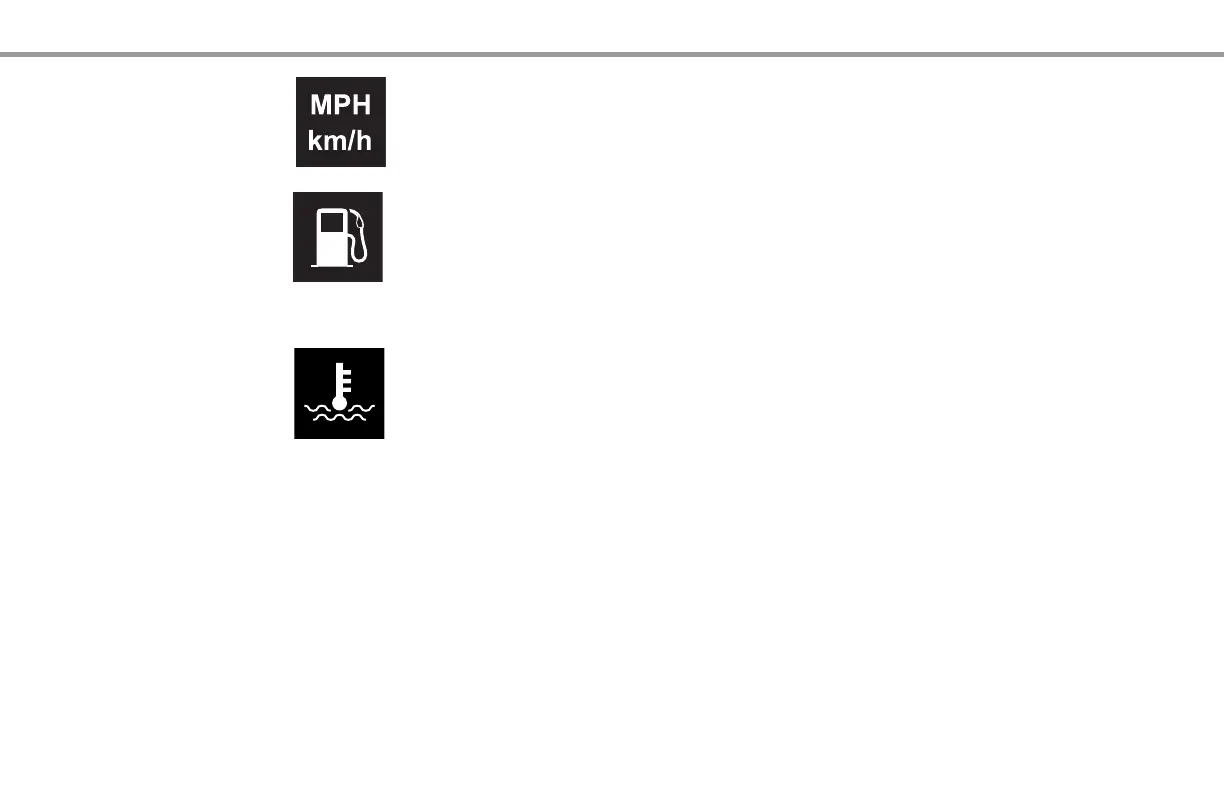

A. SPEEDOMETER
This vehicle’s speedometer is equipped with double scale divisions. Either major
divisions in mph and minor divisions in kph or major divisions in kph and minor
divisions in mph.
B. FUEL GAUGE
The fuel gauge only operates when the contact is on.
Factor in the delay on the gauge when the contact is turned on.
C. MASTER DISPLAY
See "MASTER DISPLAY".
D. COOLANT TEMPERATURE GAUGE
The engine should not be operated under full load if the temperature is in the blue
field.
The engine is at operating temperature when the temperature gauge is vertical, or
slightly further.
If the coolant temperature suddenly rises and/or the pointer is in the red field, the
following points should be checked:
- coolant level (caution – danger of scalding; see "Topping up coolant" in
"INSPECTIONS AND MAINTENANCE");
- poly V-belt and water hoses;
- fan clutch.
