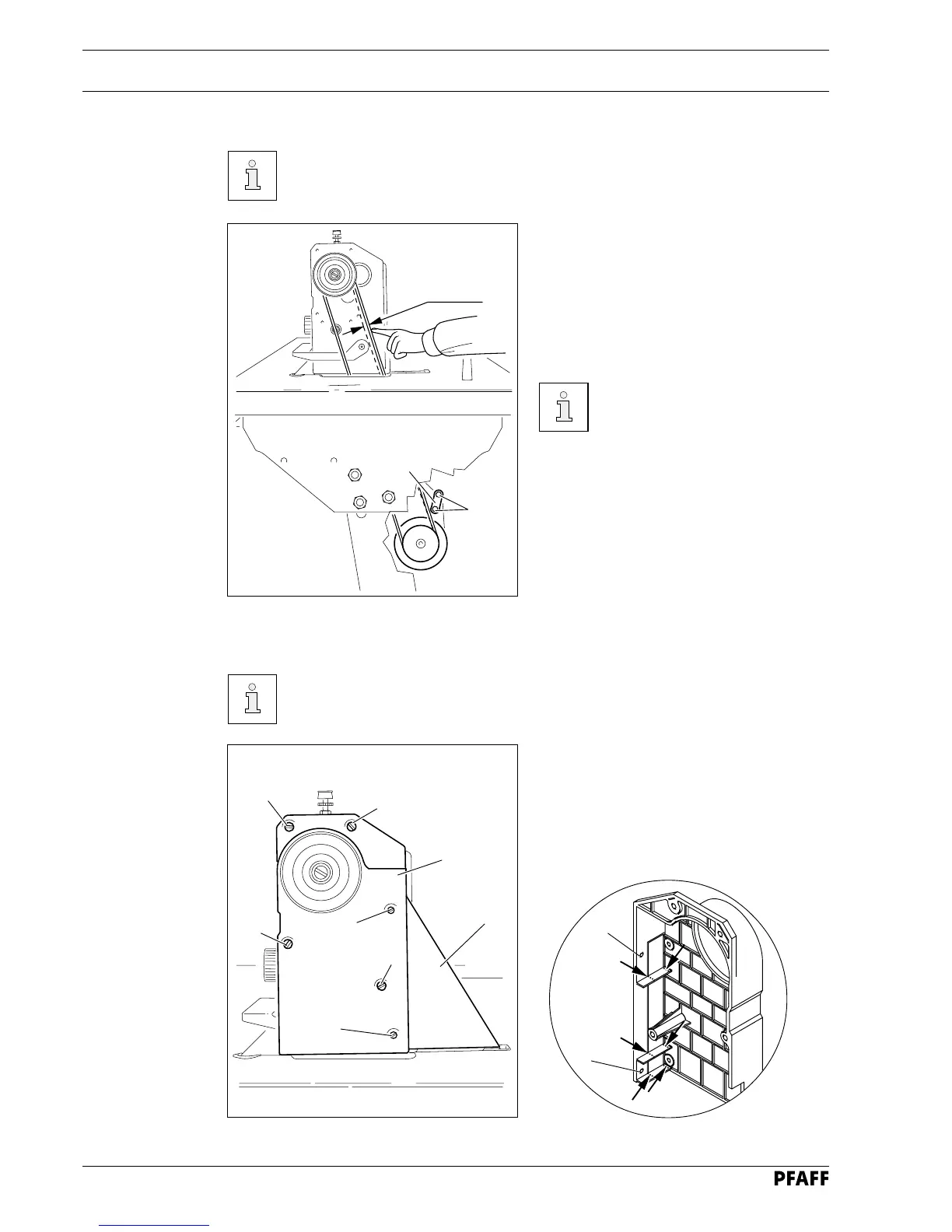

8.01.02 Adjusting the V-belt tension
This step is eliminated for integrated sewing motors.
● Loosen nuts 1.
● Tighten the V-belt with belt take-up
hanger 2.
● Tighten nuts 1.
A quick motor is shown in
Fig. 8-02. If another motor is
used, carry out this step
according to the instructions in
the motor instruction manual.
Fig. 8 - 02
8.01.03 Mounting the upper V-belt guard
This step is eliminated for integrated sewing motors.
● Break out the belt guard case 1 at the
points marked by the arrows.
● Fasten belt guard 2 in holes 3.
● Attach belt guard 4 to the machine case
with screws 5.
1
2
2 cm
3
3
Fig. 8 - 03
5
5
5
5
4
2
3
3
