Adjustment
11 - 4
11.05.02 Preadjusting the needle height
Requirement
When the needle bar is positioned 1.8 mm above BDC, the mark on the needle bar 1 must
be flush with the bottom edge of the needle bar frame 3.

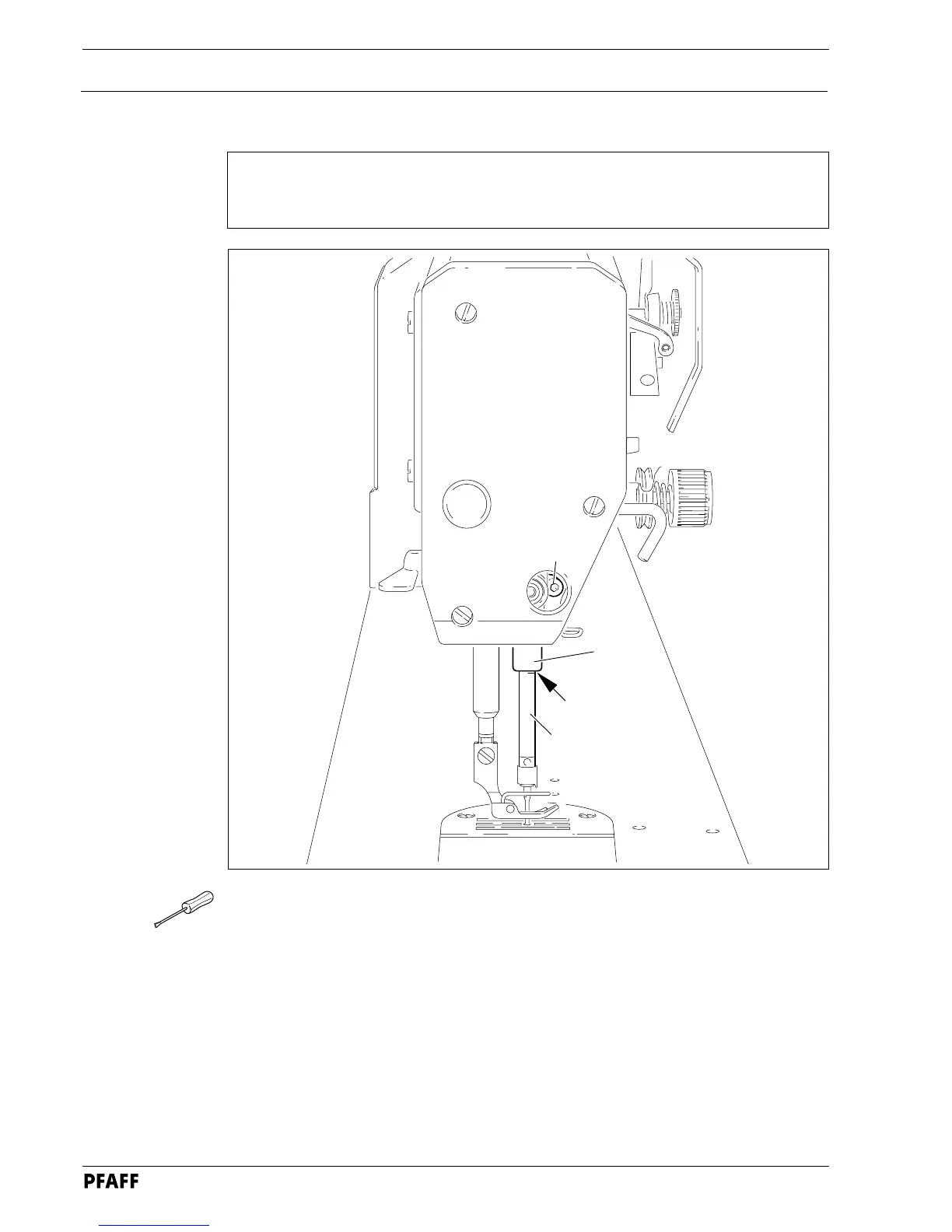

Fig. 11 - 03
● Set needle bar at 1.8 mm past b.d.c. and block machine with blocking pin, see
Chapter 11.04 Checking and adjusting aids.
● Move needle bar 1 (screw 2), without turning it, according to the requirement.
2
1
3
