Pfaff 1051

Adjustment
11 - 38
11.09 Adjusting the automatic presser foot lift -910/06
Requirement
When the automatic presser foot lift is operated, the clearance between the presser foot
and the needle plate must be
9 mm9 mm
9 mm9 mm
9 mm for a small needle bar stroke and
13 mm13 mm
13 mm13 mm
13 mm for a large
needle bar stroke.
● Move magnet 1 (screw 2) according to the requirement.

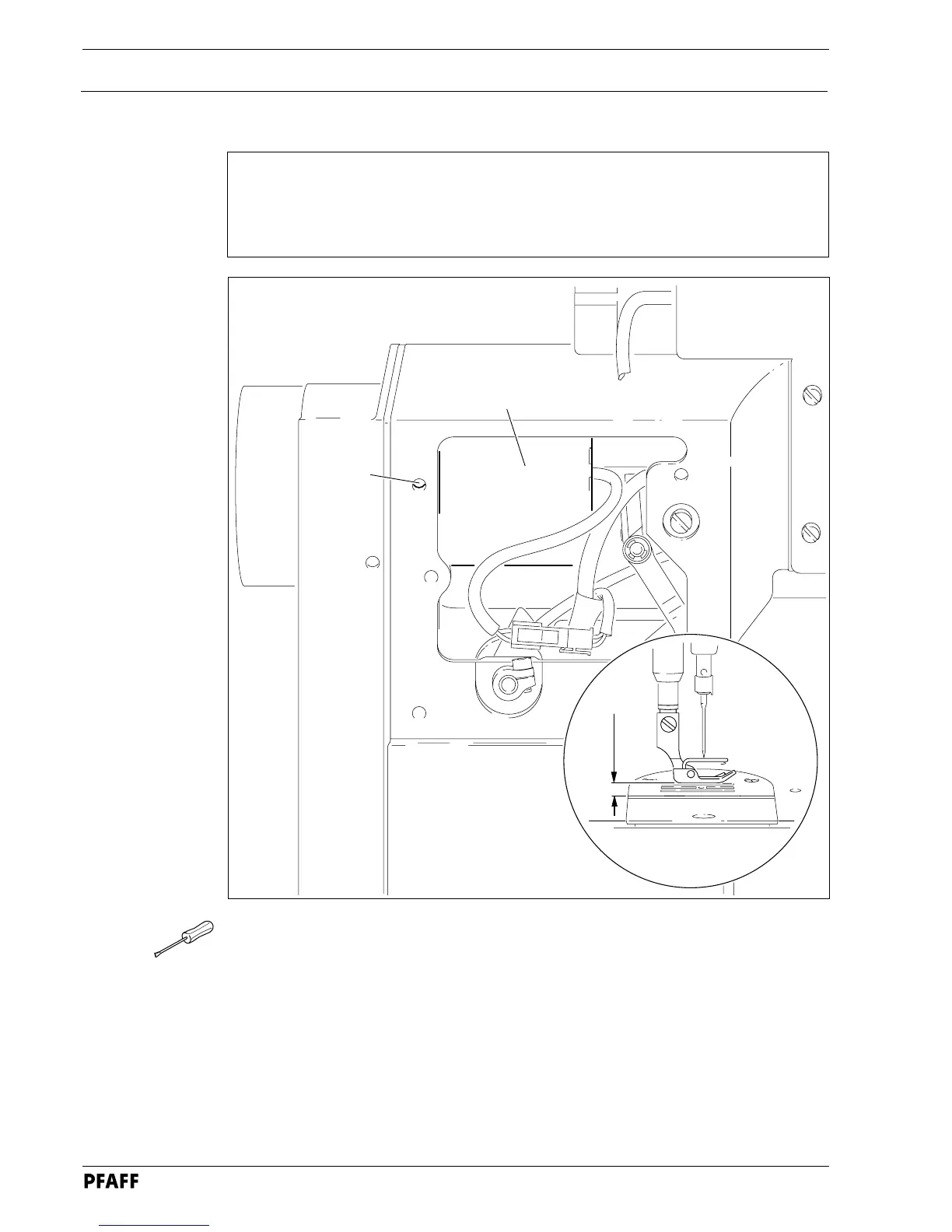

Fig. 11 - 37
2
1
9 or 13 mm
