Adjustment
11 - 29
11.07 Adjusting the thread trimmers -900/24
11.07.01 Magnet setting
Requirement
1. The distance between the bottom edge of the plunger and the top edge of the
washer 5 must be 96 mm.
2. When the thread trimmer is in resting position (magnet retracted), the roller lever 6
must rest against bolt 7 and be at a distance of approx. 0.1 mm from roller 8.
● Turn plunger 1 (nut 2) according to requirement 1.
● Bring thread trimmer into resting position.
● Move magnet holder 3 (screws 4) according to requirement 2.

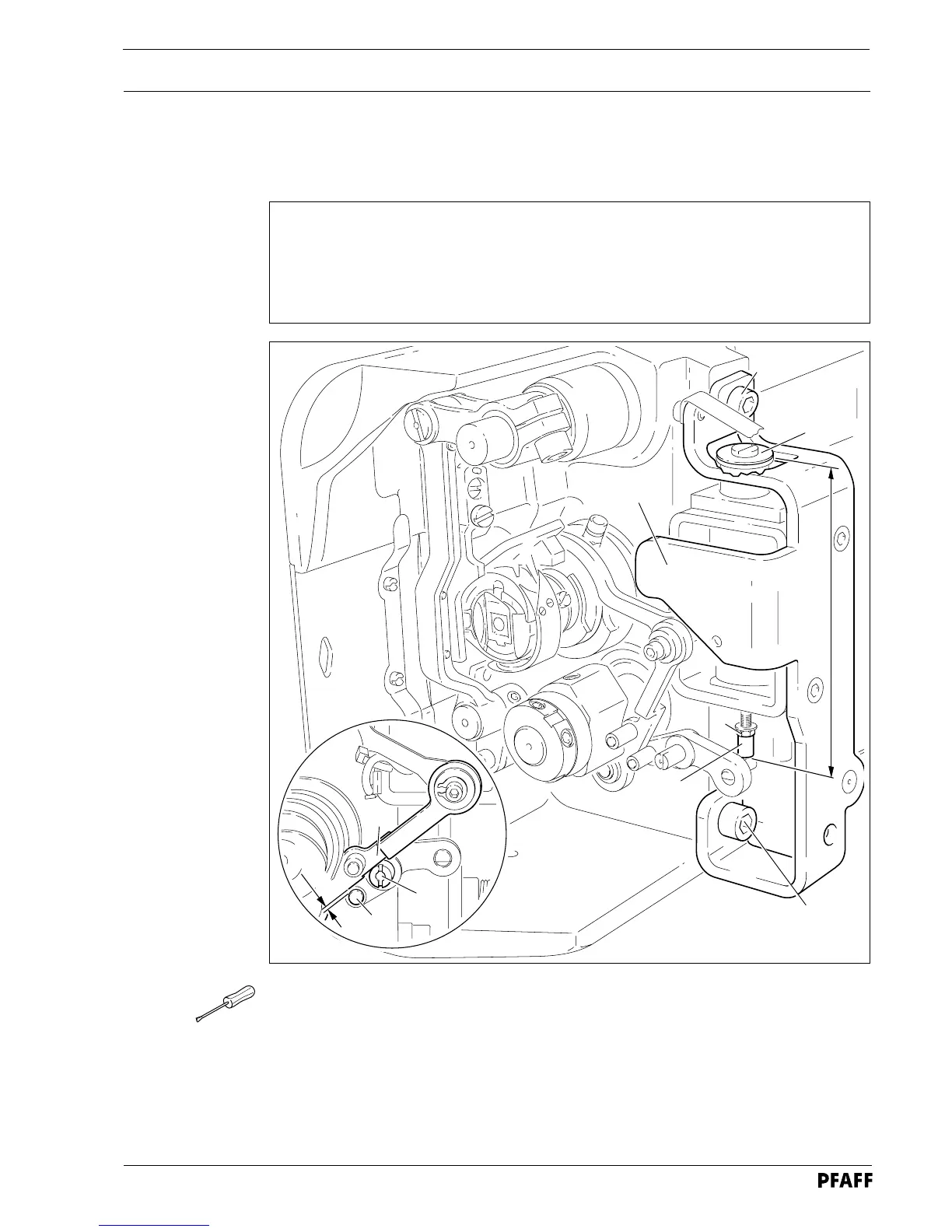

Fig. 11 - 28
1
96 mm
4
3
5
4
2
6
0.1 mm
8
7
