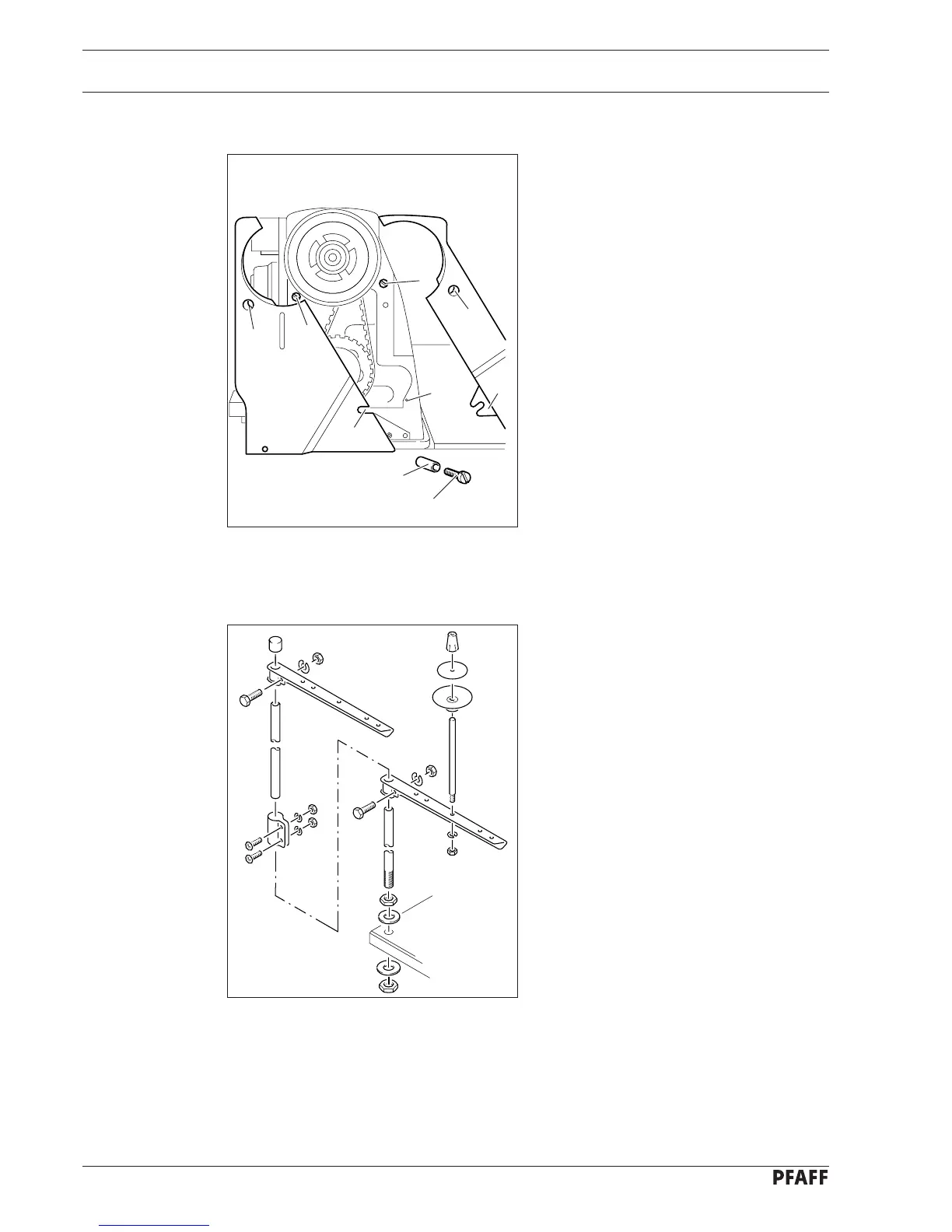

8.01.02 Mounting the upper V-belt guard / Fitting the machine cover
● Slide the left and right halves of the V-
belt guard into place with the slots
behind the heads of screws 1 and 2.
● Screw screw 3 with distance bush 4 into
threaded hole 5.
● Align the V-belt guard, taking care that
clip 6 is behind slot 7 and in front of
distance bush 4.
● Tighten screws 1 and 2 (through holes 8
and 9) and screw 3.
● When using an external motor, the motor
cover must also be fitted as described by
the motor manufacturer.
Fig. 8 - 02
9
8
7
6
5
1
2
4
3
8.01.03 Fitting the reel stand
● Fit the reel stand as shown in Fig. 8-03.
● Afterwards insert the stand in the hole in
the table top and secure it with the nuts
provided.
Fig. 8 - 03
