Installation and commissioning
8 - 4

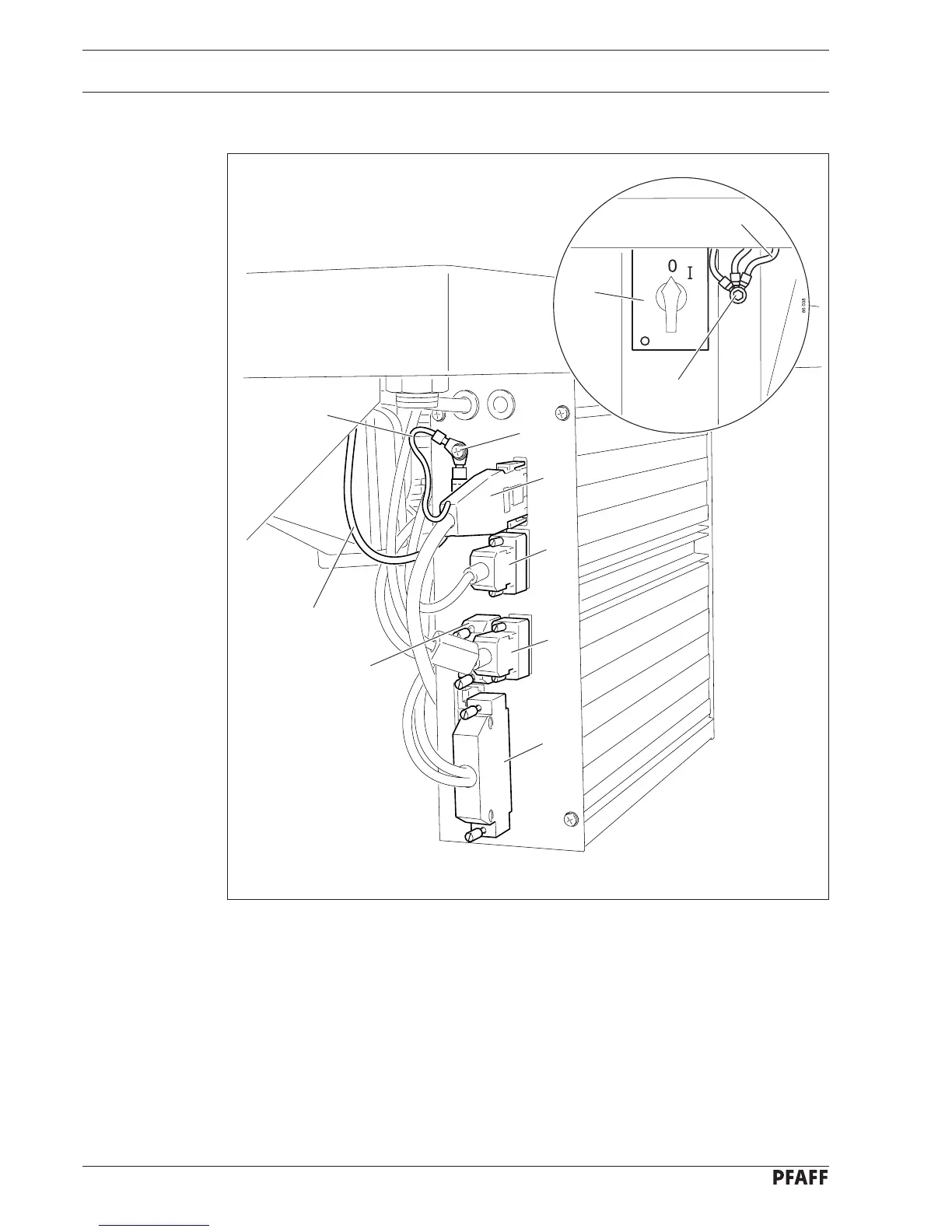

8.04 Connect the plug-type connections and earth cable of the Quick-flange motor.
Fig. 8 - 06
● Connect all the plugs 1-5 to the control box as labelled.
● Screw the earth cable from the sewing head and from main switch 6 to earth point A.
● Connect earth point A and earth point B with earth cable 7.
● Screw the earth cable 8 from the motor to earth point B.
7
B
1
2
3
4
5
8
A
6
7
