Adjustment
10
Activate lifting movement
● Lifting movement is activated if connection part 8 is swiveled in as shon in
fi gures 1 - 05a, and screws 9 (M6 x 16) and 10 (M5 x 16) have been attached.
Deactivate lifting movement
● R
emove screws 9 and 10 and swivel connection part 8 (screw 11 ) towards the right.
● Replace screw 9 with a screw M6 x 25.
● Replace screw 10 with a threaded pin M5 x 25 and tighten to stop.
Adjust transporter height with deactivated stroke movement so that the upper
edge of the transporte is at the height of the upper edge of the needle plate.
Adjust the transporter height once again with the stroke movement activated,
as described in chapter 1.05.06.

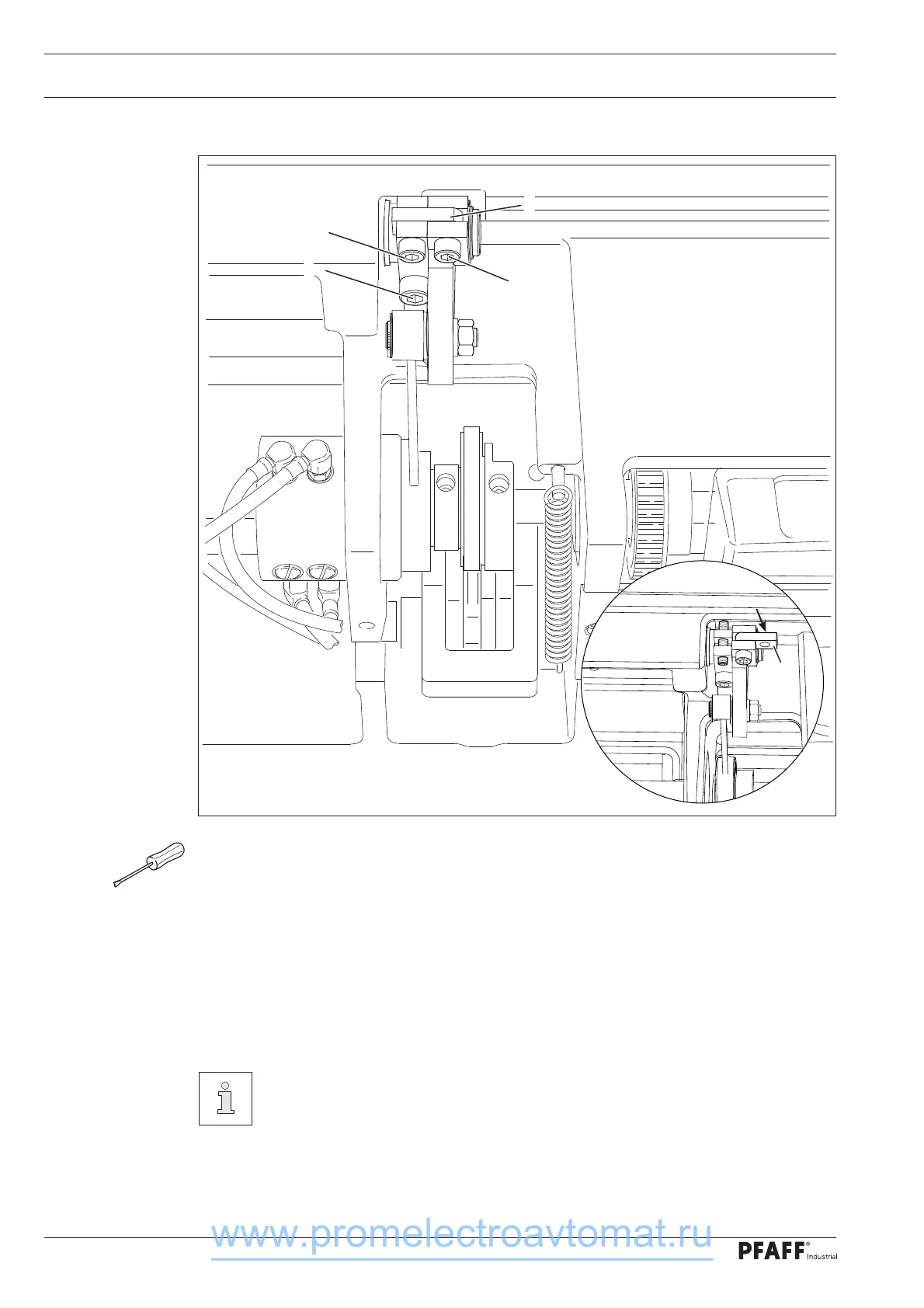

Fig. 1 - 05a
10
9
8
11
8
