Adjustment
21
Fig. 1 - 15
2
1
3

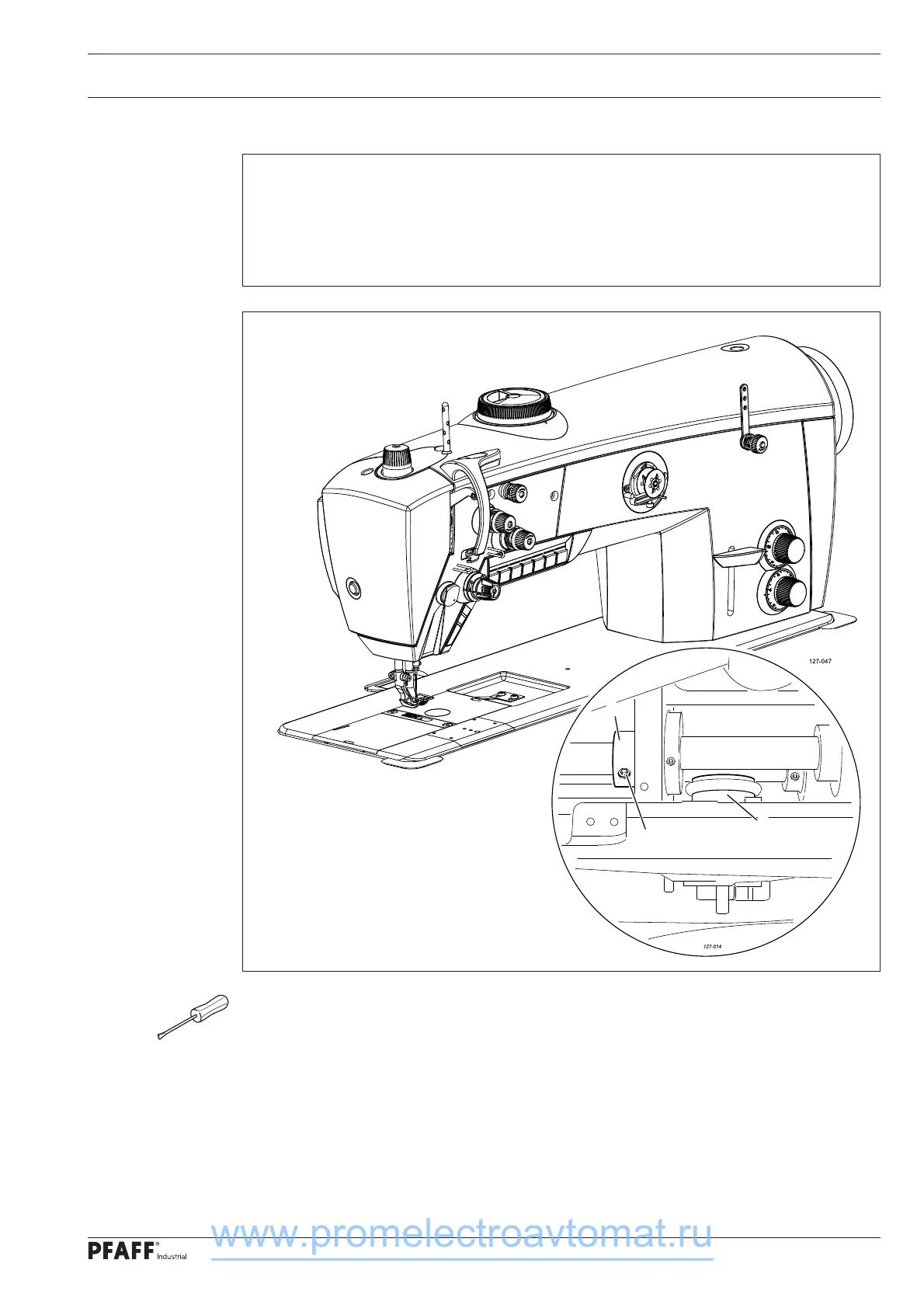

1.05.15 Bobbin winder
Requirement
1. When the bobbin winder is engaged, the winding spindle must be driven reliably.
When it is disengaged, friction wheel 3 should not be touching drive wheel 1.
2. When it is switched off, the bobbin winder must click securely into its end position
(knife raised).
● Adjust drive wheel 1 (screw 2) in accordance with the requirement.
