Adjustment
25
1.05.19 Limiting the stitch length
When exchanging the parts kit with stitch lengths differing from the as-deliv-
ered state of the machine, limit the max. stitch length using stitch adjuster 4.
● Set the desired max. stitch length at control button 1
(on model CN9 = 9.0 mm, on model DN12 = 12 mm)
● Remove adjustment knob 1 (screws 2) and scale dial 3.
● Remove adjustment unit 4 (screws 5).
● Bring lineal 6 (screw 7) to the unit using stitch adjuster 4 (see arrow).
● Replace adjustment unit 4, scale dial 3 and adjustment knob 1.

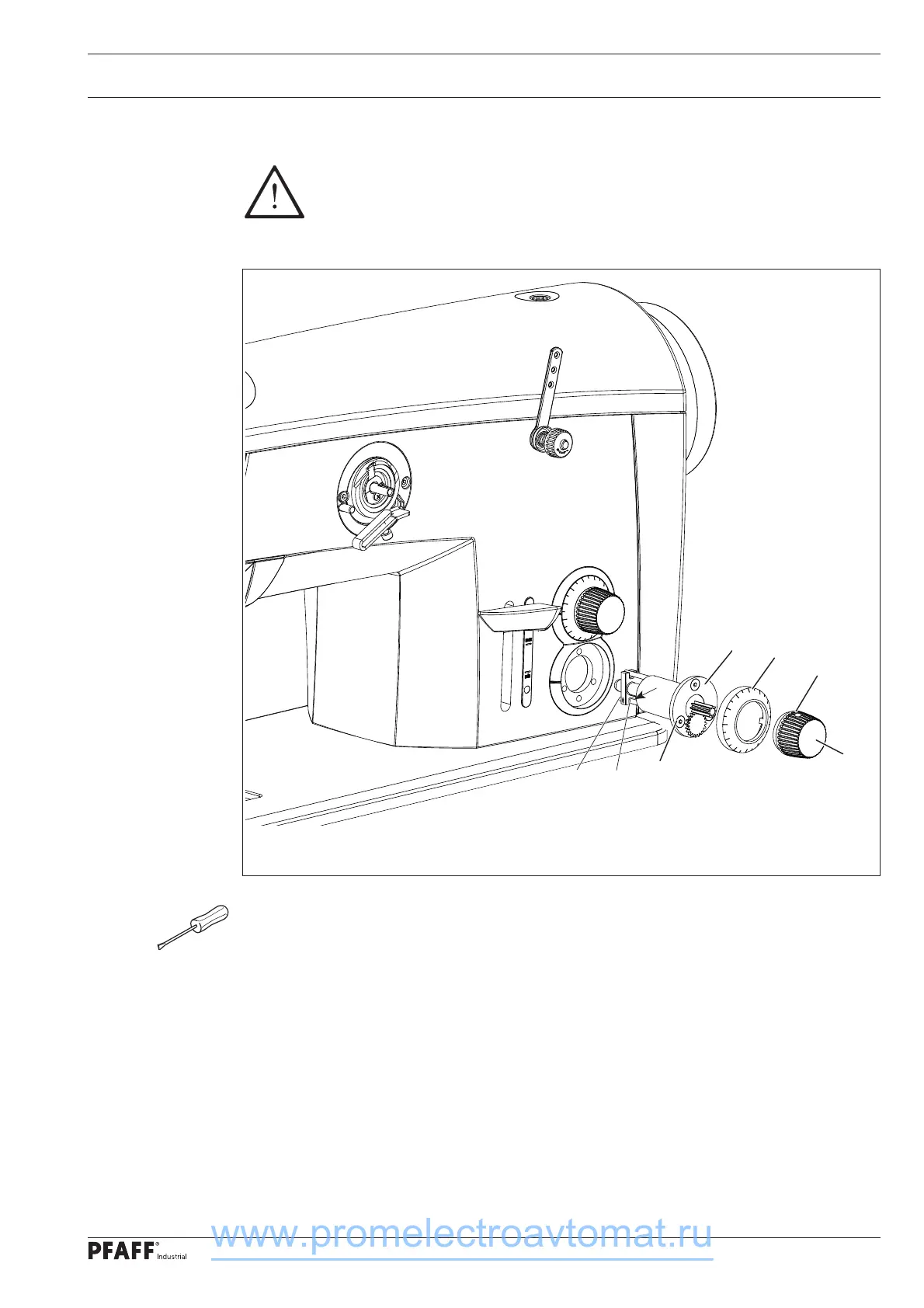

Fig. 1 - 19
1
2
3
5
4
6
7
