Adjustment
16
1.05.10 Top feed stroke
Requirement
With adjustment wheel 1 set at "5", the top feed dog 7 and presser foot 4 should each
rise by 5.0 mm.
● Remove the bottom feed dog and set adjustment wheel 1 at "5".
● Loosen the screws of the needle plate, place the metal gauge over the opening of the
needle plate slot so that both sewing feet can be lowered onto the metal gauge.
● For the preliminary adjustment, adjust crank 2 (screw 3) so that there is a clearance of 5
mm between presser foot 4 and the needle plate.
● Adjust crank 5 (screw 6) so that top feed dog 7 and presser foot 4 have the same stroke.
● Check the adjustment in accordance with the requirement, and correct if necessary.

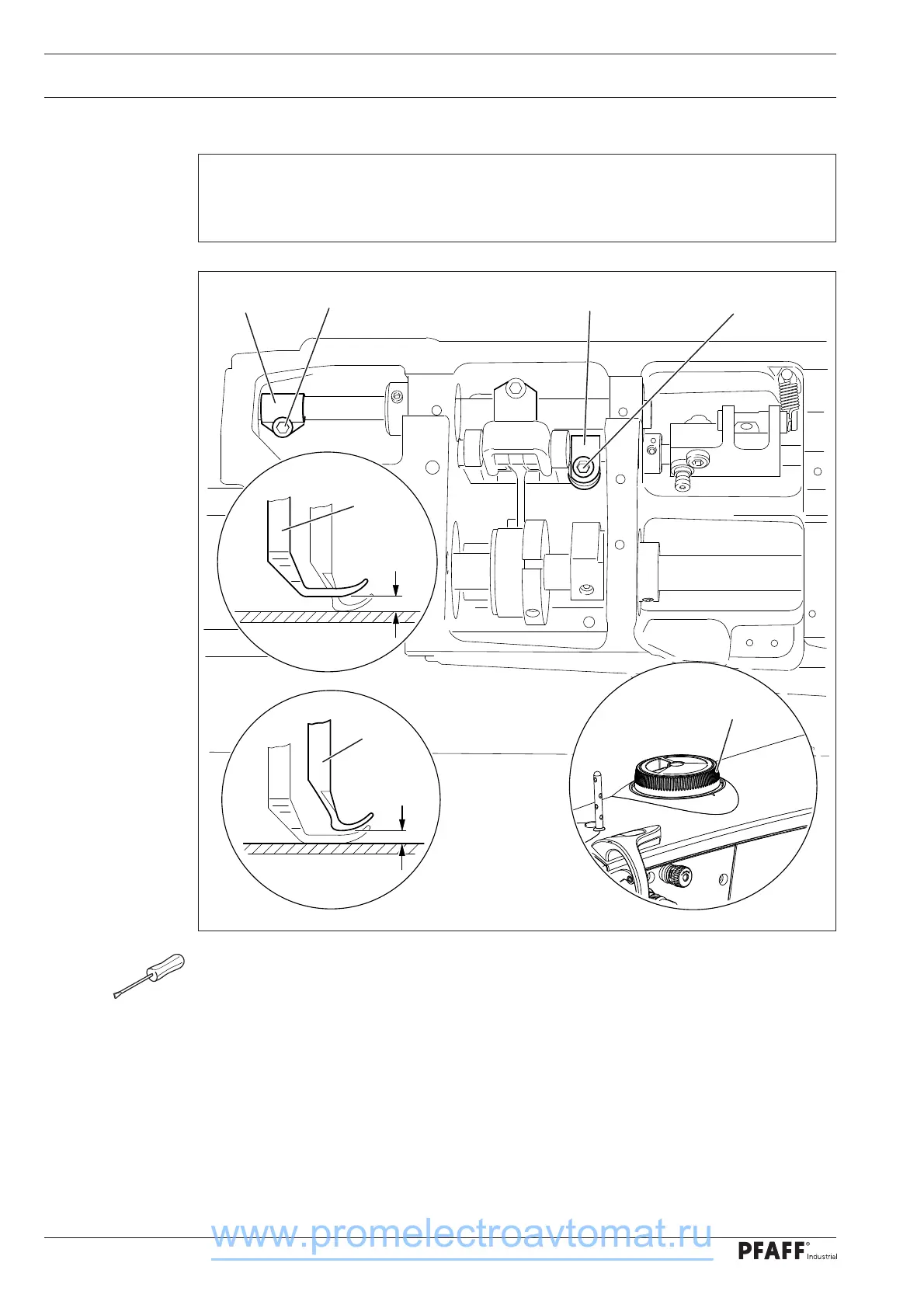

Fig. 1 - 10
7
5 mm
4
5 mm
2
3
5
6
1
