Adjustment
32
1.06.05 Manual cutting test
Requirement
1. 1. When moving forward, thread catcher 1 must not move bobbin thread 3
2. When thread catcher 1 is at its front point of reversal, bobbin thread 3 should be in the
centre of the marked area (see arrow).
3. After the cutting operation has been completed, needle and bobbin thread should be
cut neatly and bobbin thread 3 held.
● Sew a few stitches.
● Switch off the main switch and the compressed air.
● Carry out a manual cutting test.
● Check requirement 1. If necessary, readjust thread catcher 1 in accordance with Chapter
1.06.02 Position and height of the thread catcher.
● Check requirement 3. If necessary, readjust bobbin thread clamp spring 2 in accordance
with Chapter 1.06.04 Bobbin thread clamp spring.

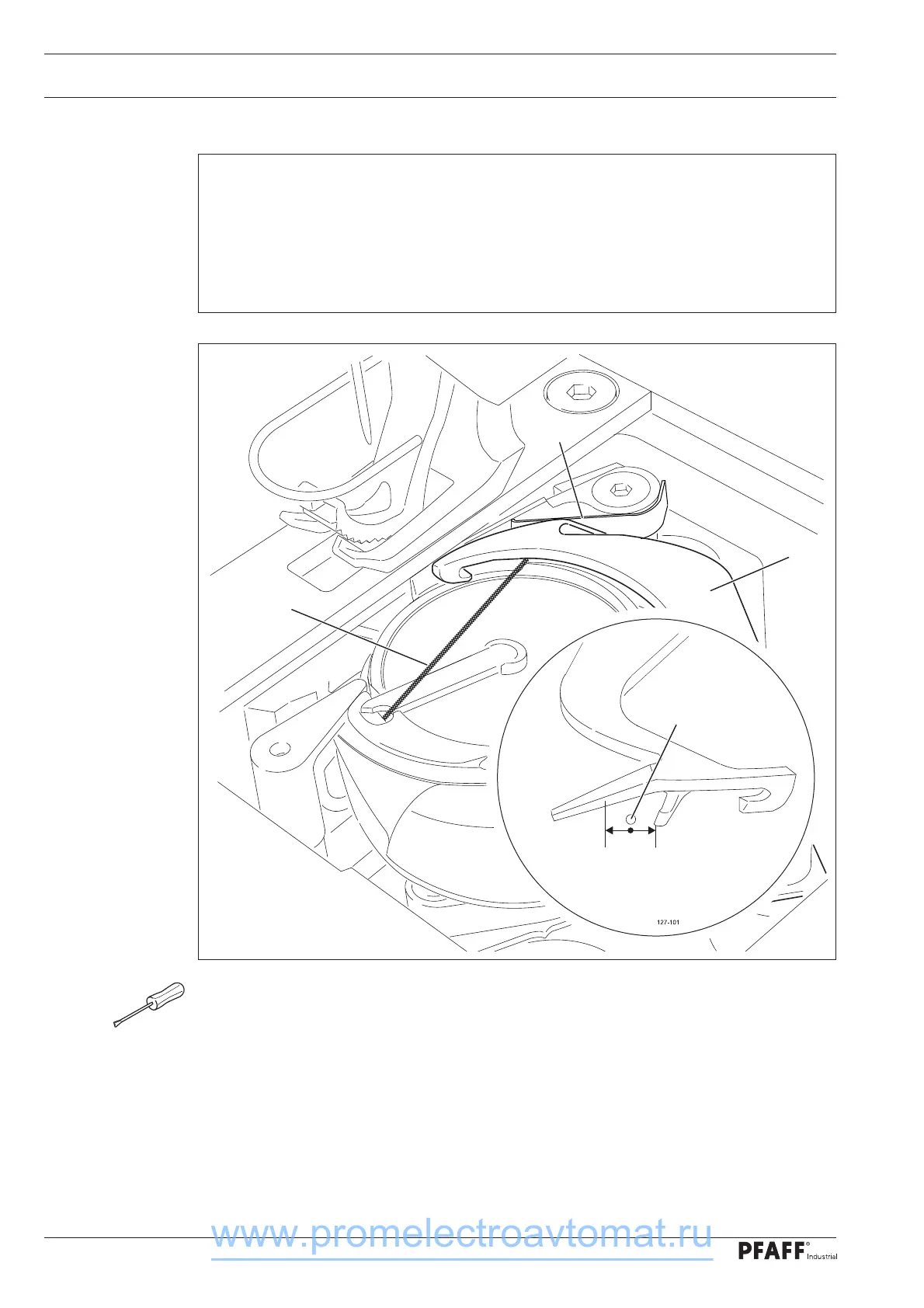

Fig. 1 - 26
1
2
3
3
