Adjustment
13
● Without turning it, re-position needle bar 1 (screw 2) in accordance with the
requirement.
Make sure that needle bar 1 and foot 3 do not collide.
1
2

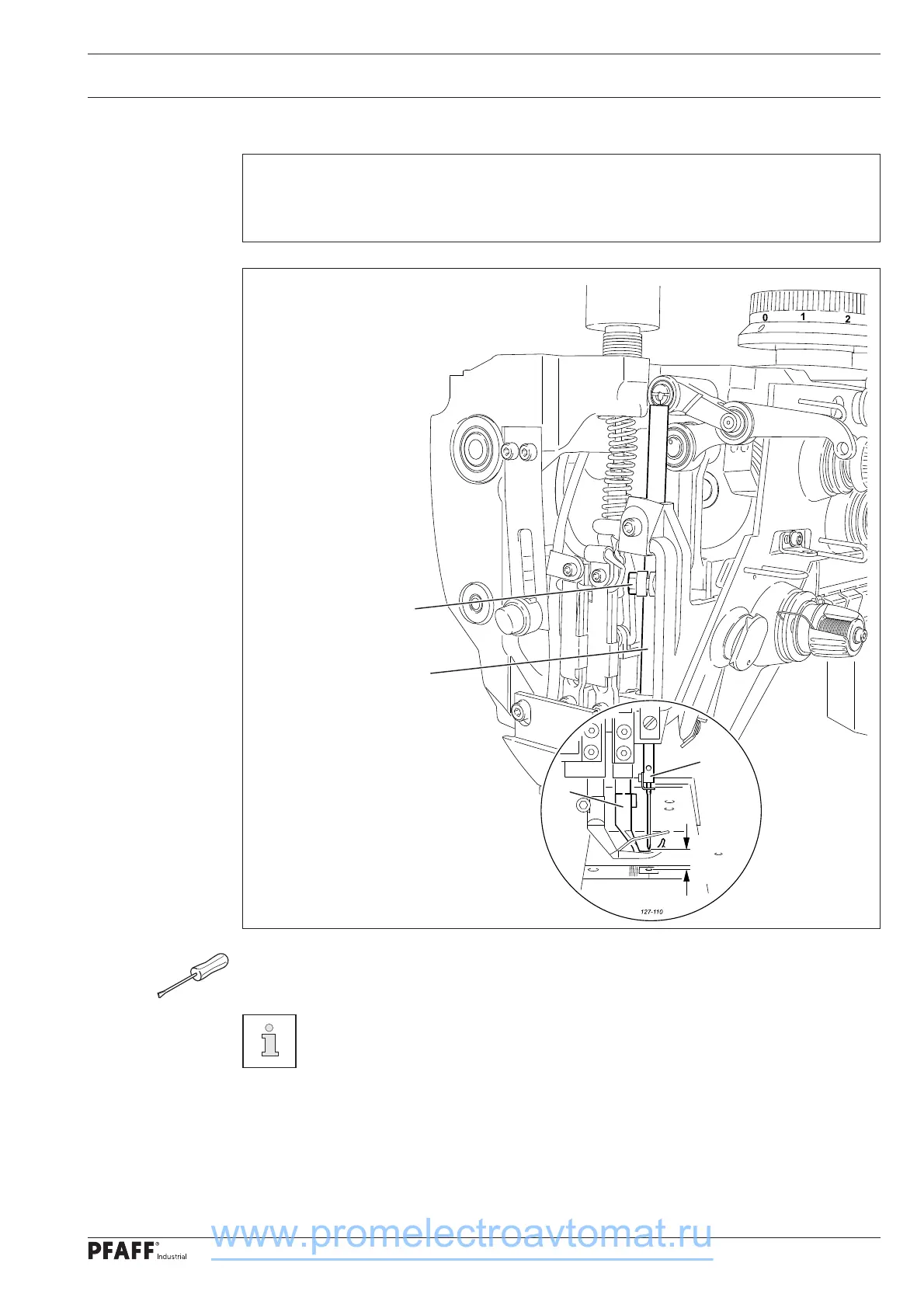

Fig. 1 - 08
22 mm
1
3
1.05.08 Preliminary adjustment of the needle height
Requirement
When the needle bar is positioned at t.d.c. (balance wheel position 0°), the clearance
between the needle point and the needle plate should be 22 mm.
