Adjustment
30
1.06.03 Knife pressure
Requirement
When the front edge of thread catcher 3 is 5 – 6 mm in front of the knife blade, the knife
4 should be touching the catcher edge with slight pressure.
● Bring the take-up lever to its b.d.c and press roller lever 1 into the control cam 2.
● Turn the balance wheel until the front edge of catcher 3 is at a distance of 5 – 6 mm from
the blade of knife 4.
● Swing knife bearing 5 (screw 6) in accordance with the requirement.
After completing the adjustment, recheck the position of the thread catcher in
accordance with Chapter 1.06.02 Position and height of the thread catcher.

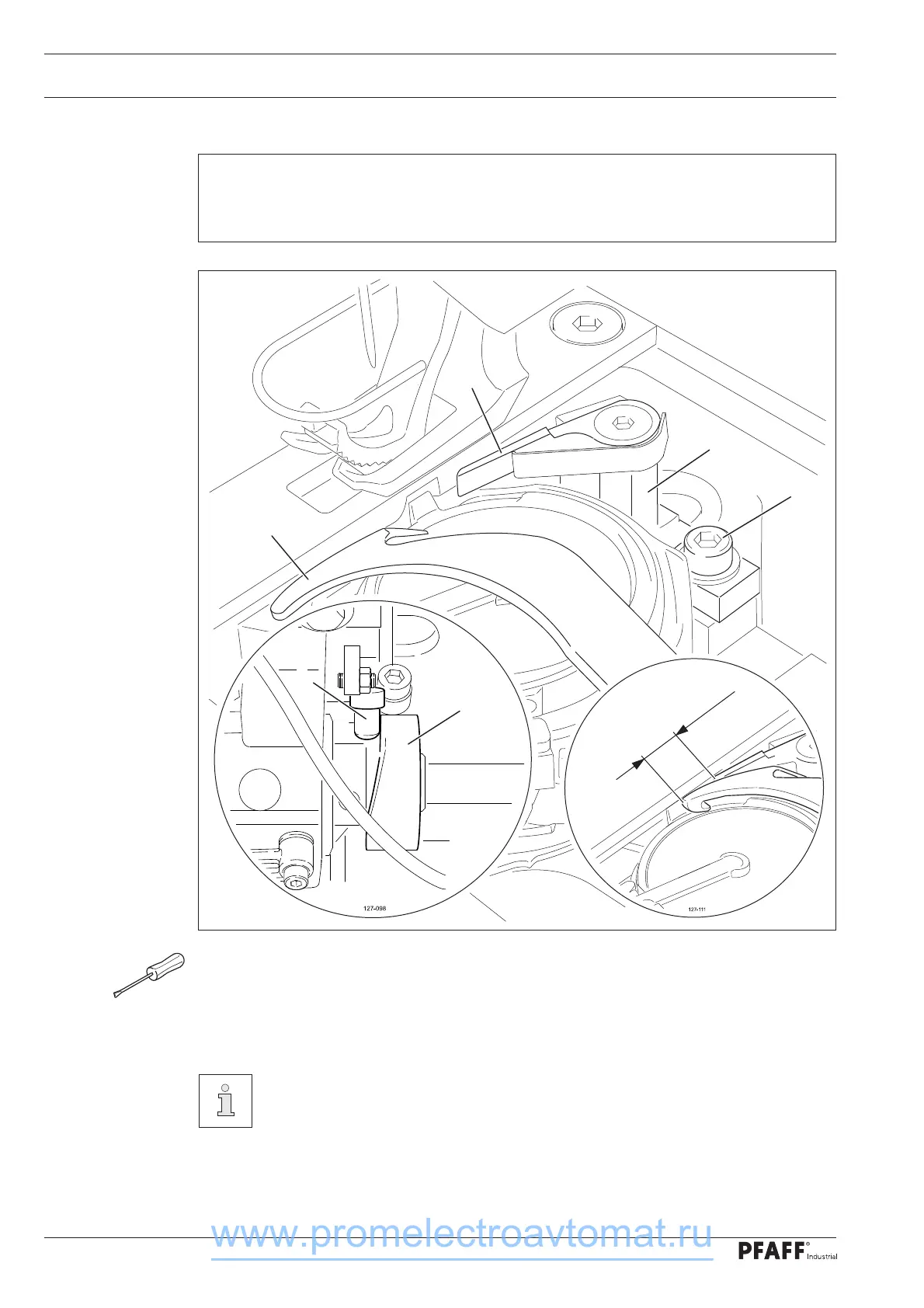

Fig. 1 - 24
4
3
5
6
2
1
5 - 6 mm
