Adjustment
5

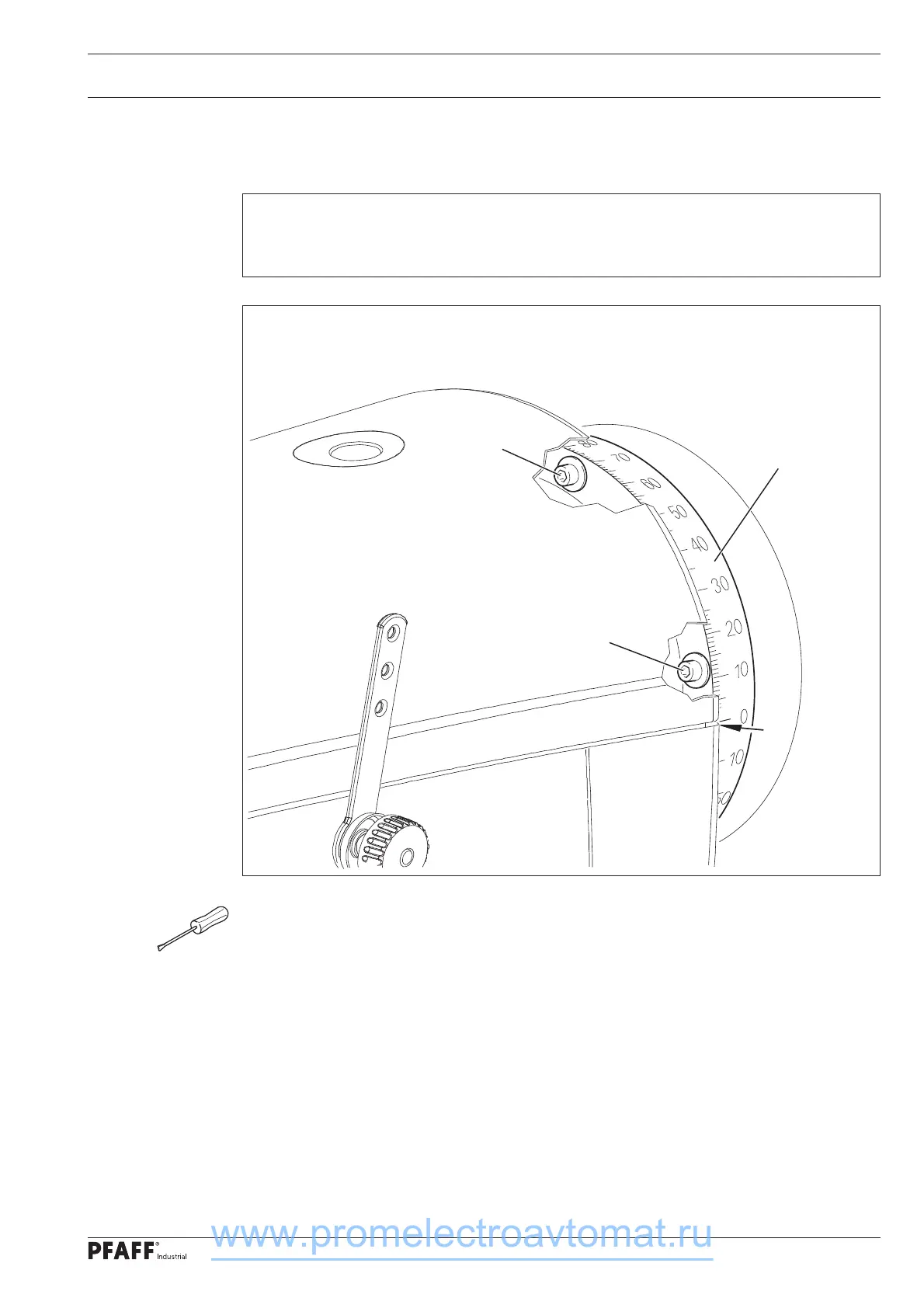

Fig. 1 - 01
1
2
2
127-01
1.05 Adjusting the basic machine
1
.05.01 Basic position of the balance wheel (adjustment aid)
Requirement
When the needle bar is positioned at t.d.c., the marking "0" on the scale should be level
with the top edge of the belt guard (see arrow).
Adjust the scale dial 1 (four screws 2) in accordance with the requirement.
