Operating Manual | Roof-mounted Cooling Unit | Multi Controller (MC) – 230 V | 086100023d 16/80
3.4.4.1 PAD-frame
Three different PAD-frames are provided for the flat duct system (see Fig. 5):
• DTT-cooling units 6101/6201 size 1 (500 W/1000 W): PAD-single-duct system with PAD-single-duct frame.
• DTT-cooling units 6301/6401 size 2 (1500 W/4000 W): PAD-dual-duct system with PAD-dual-duct frame.
• DTT-cooling units 6601/6801 size 3 (1500 W/4000 W): PAD-dual-duct system with PAD-dual-duct frame.
PAD-frame (single-duct system)
DTT-cooling units 6101/6201
PAD-frame (dual-duct system*)
DTT-cooling units 6301/6401
PAD-frame (dual-duct system*)
DTT-cooling units 6601/6801

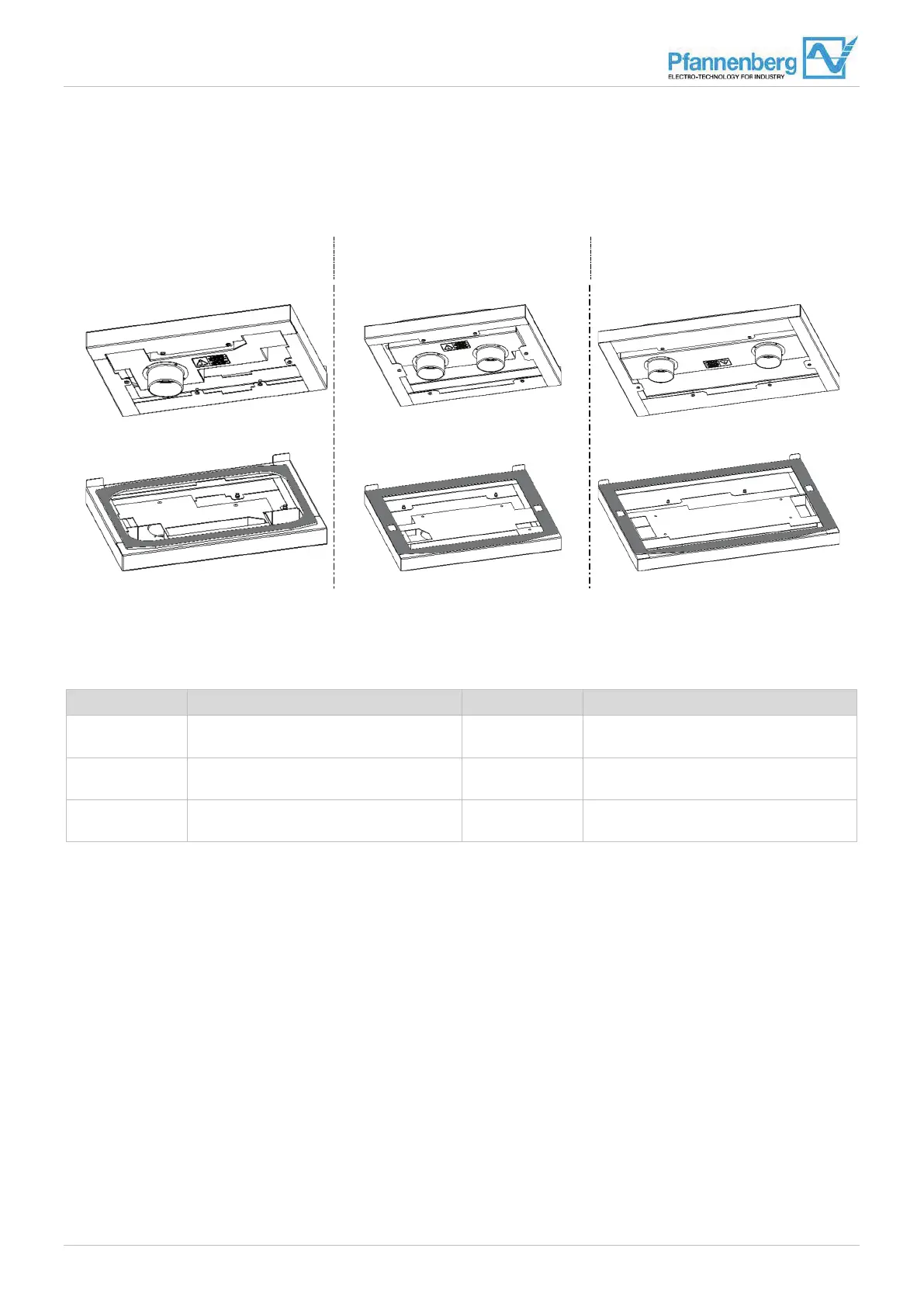

Fig. 5: PAD-frame
* The PAD-dual-duct system requires the use of two PAD-air duct systems.
The DTT-cooling units need the following PAD-frames and the following PAD-air duct system:
Order number Designation Order number Designation
18315000005
DTT 6101/6201 PAD-frame (single-duct
system)
18315000002 PAD-air duct system*
18315000001
DTT 6601/6801 PAD-frame (dual-duct
system*)
18315000004 PAD-extension package
18315000000
DTT 6301/6401 PAD-frame (dual-duct
system*)
Tab. 2: Ordering information for PAD-systems
* The PAD-dual-duct system requires the use of two PAD-air duct systems.
