4.5.5.3 Unit preparation – fitting the bracket
Procedure
1. Puncture the insulation of the bracket opening (1) with a
screwdriver. Turn 2× to the right and 2× to the left.
2. Mount the two brackets (3) with the four screws (2) and the four
washers (accessory kit).
– The openings of the brackets face forwards.
3. Remount the cover and the front flap in reverse order.
4. Tighten the screws and plug in the earthing cables.
Preparation of the unit is completed. The cooling unit is ready for
assembly with the quick-change frame.

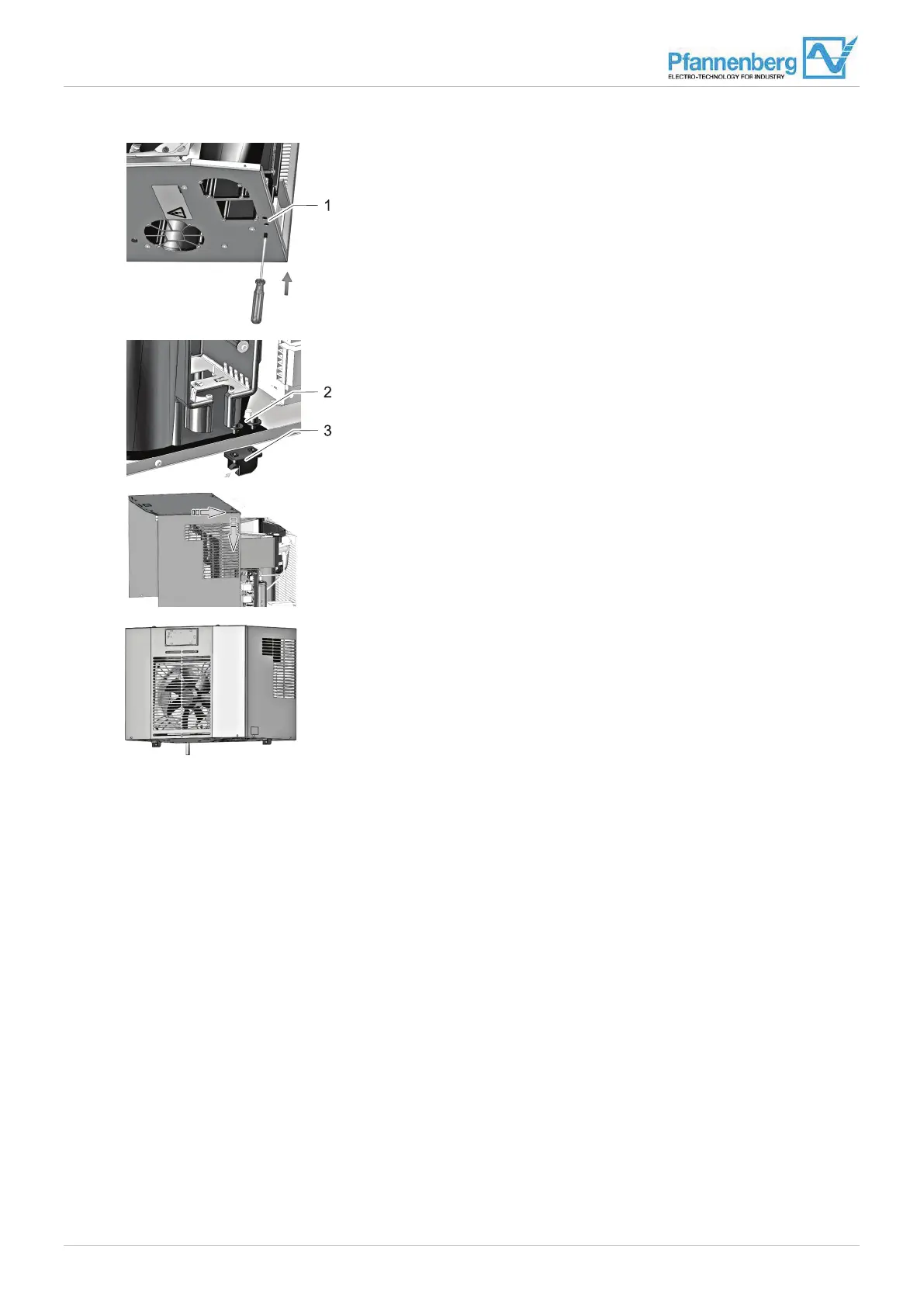

Fig. 20: Mounting the bracket
