EN – 5
2033 - 2063 m
3
/h rotary vane pumps.
SD, C1, C2 Pascal series
The 33 to 63m
3
/h pump models,
have following main characteristics:
– A direct drive motor making
them very compact.
– An anti-suckback system
ensures the tightness of the
pump during accidental or
voluntary shutdowns.
– A gas ballast enables the
pumping of condensable vapors.
– The universal three-phase
motor can be disassembled
independently of the rest of
the pump, without the need to
drain the oil case.
– On the oil case, a sight glass
can be used to inspect the oil
level easily when filling the oil
case and during the operation of
the pump.
– A neutral gas purge is used
to degas oil and dilute pumped
gases on C1 and C2 series
models.
– An oil casing purge is used to
dilute the pumped gases on C2
series models.
– Sensor connections for oil
pressure or temperature sensors
are available on C2 series
models.
The inlet and exhaust end fittings are PNEUROP ISO-KF standardized.
They can be used to connect many of our accessories (see page 14).
The main remplacement parts are interchangeable: This enables easier disassembly-
assembly operations and replacement without changing the pump’s performance.
Various accessories can be used to adapt the pump to meet the requirements of your
application.

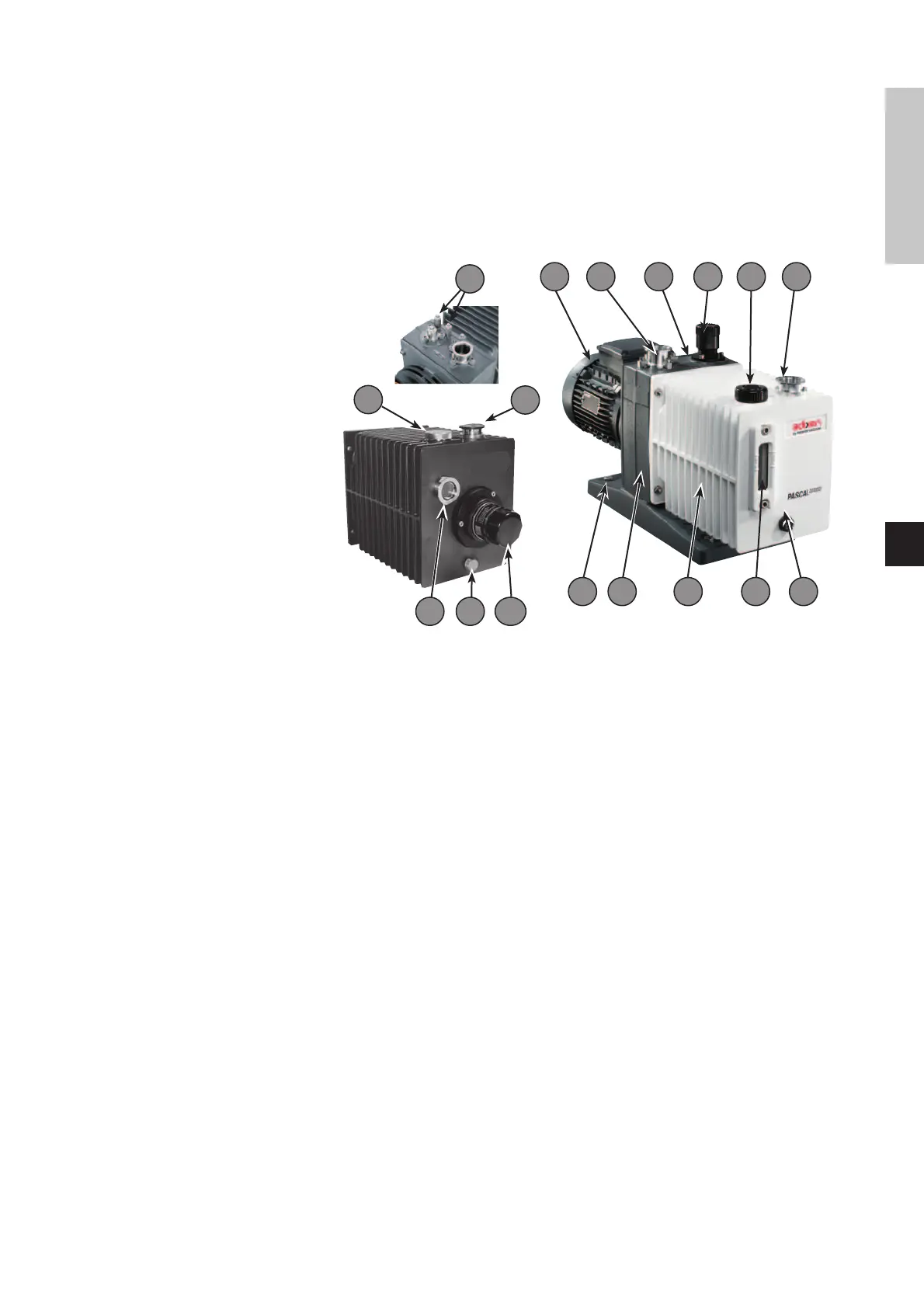

1. Oil case
2. Base
3. Frame
4. Electric motor
5. Gas ballast control
6. Spring hook (lifting device)
7. Inlet end fitting
8. Exhaust end fitting
9. Oil case filling plug
10. Sensor connections (C2 Series)
11. Oil level sight glass
12. Oil draining plug
13. Oil filter (C1 Series)
