Pfeiffer Vacuum PASCAL Series - Page 34

N – 14
14
17
19
12
6
15
16
7
8
9
10
11
3
20
21
22
1
2
4
5
13
C
1015I

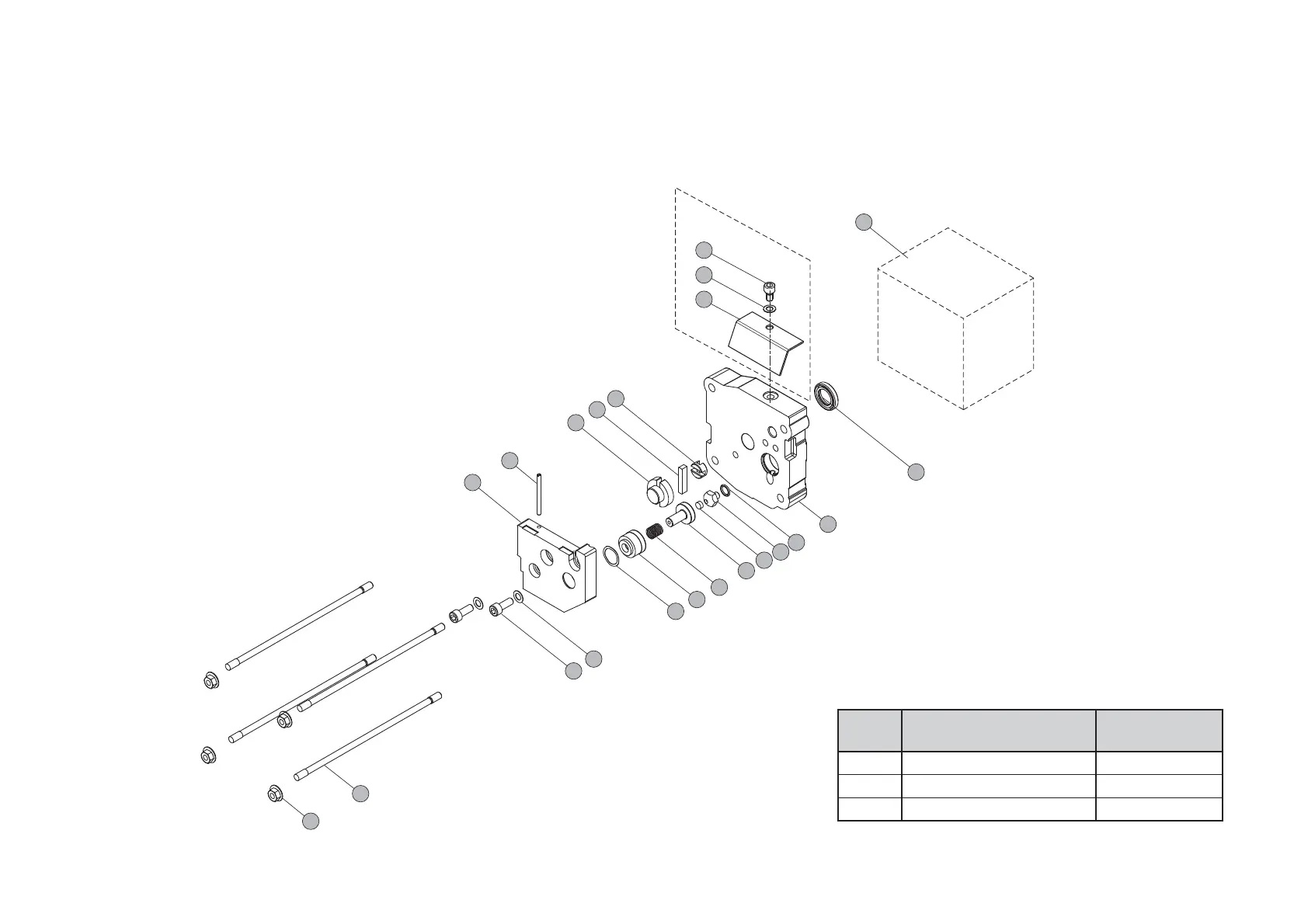

Plan du système de lubrification pompe à huile (A)
Oil pump system drawing (A)
Ölpumpsystem Gesamtplan (A)
Rep. Part
Clamping torque
(N·m)
16 / 22 Screw CHC M6 x 16 (s.steel) 9.0
17 Pin (s.steel) 14.0
19 Nut HM6 (s.steel) 9.5
