Pfeiffer Vacuum PASCAL Series - Page 36

N – 16
11
14
16
9
12
13
6
7
8
4
1
2
3
5
10
C

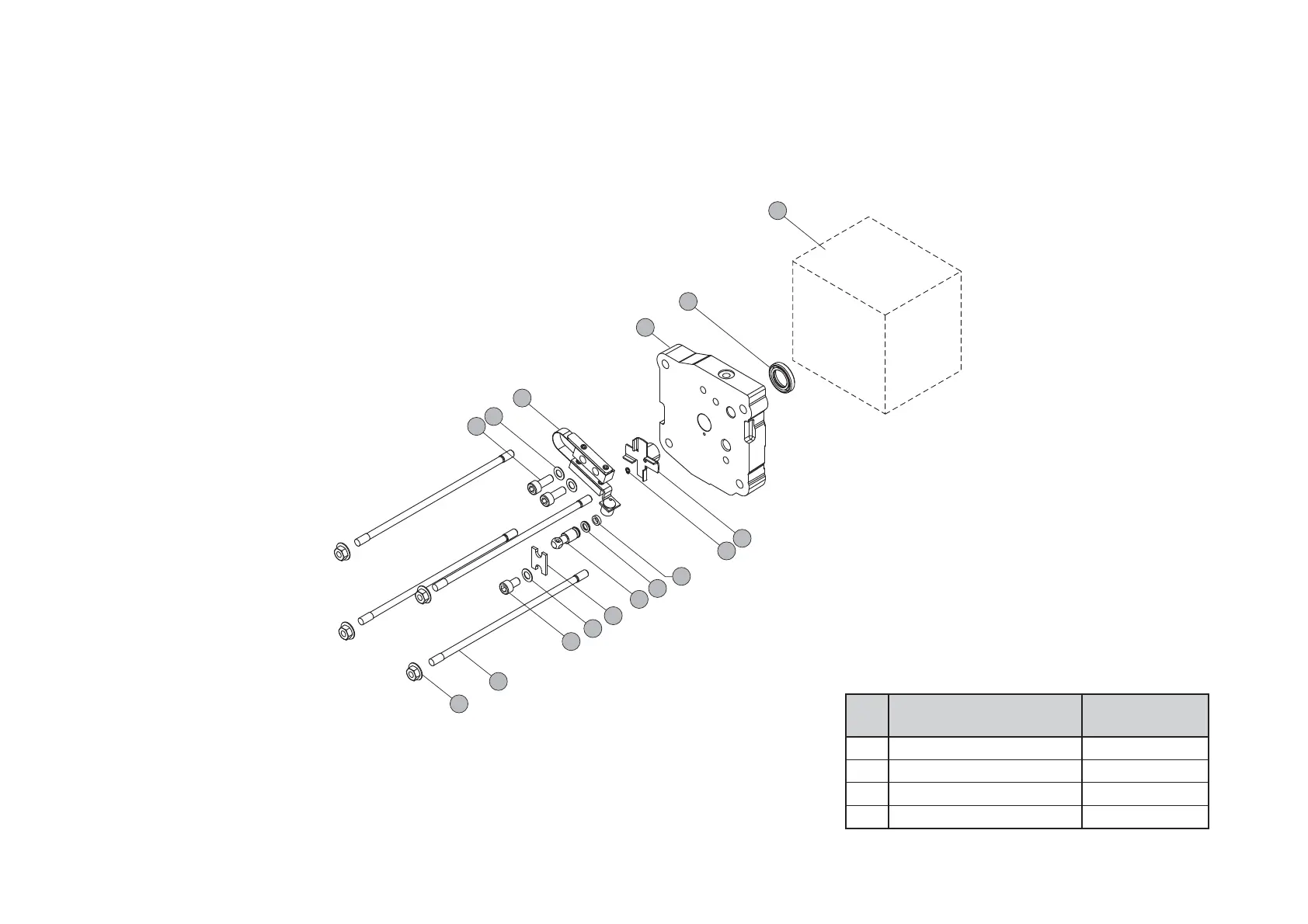

Plan du système de lubrification levier moulinet (B)
Oil system drawing (B)
Flügenrad-Ölsystem Gesamtplan (B)
Rep. Part
Clamping torque
(N·m)
1 Screw CHC M6 x 16 (s.steel) 9.0
13 Screw CHC M6 x 10 (s.steel) 9.0
14 Pin (s.steel) 14.0
16 Nut (s.steel) 9.5
