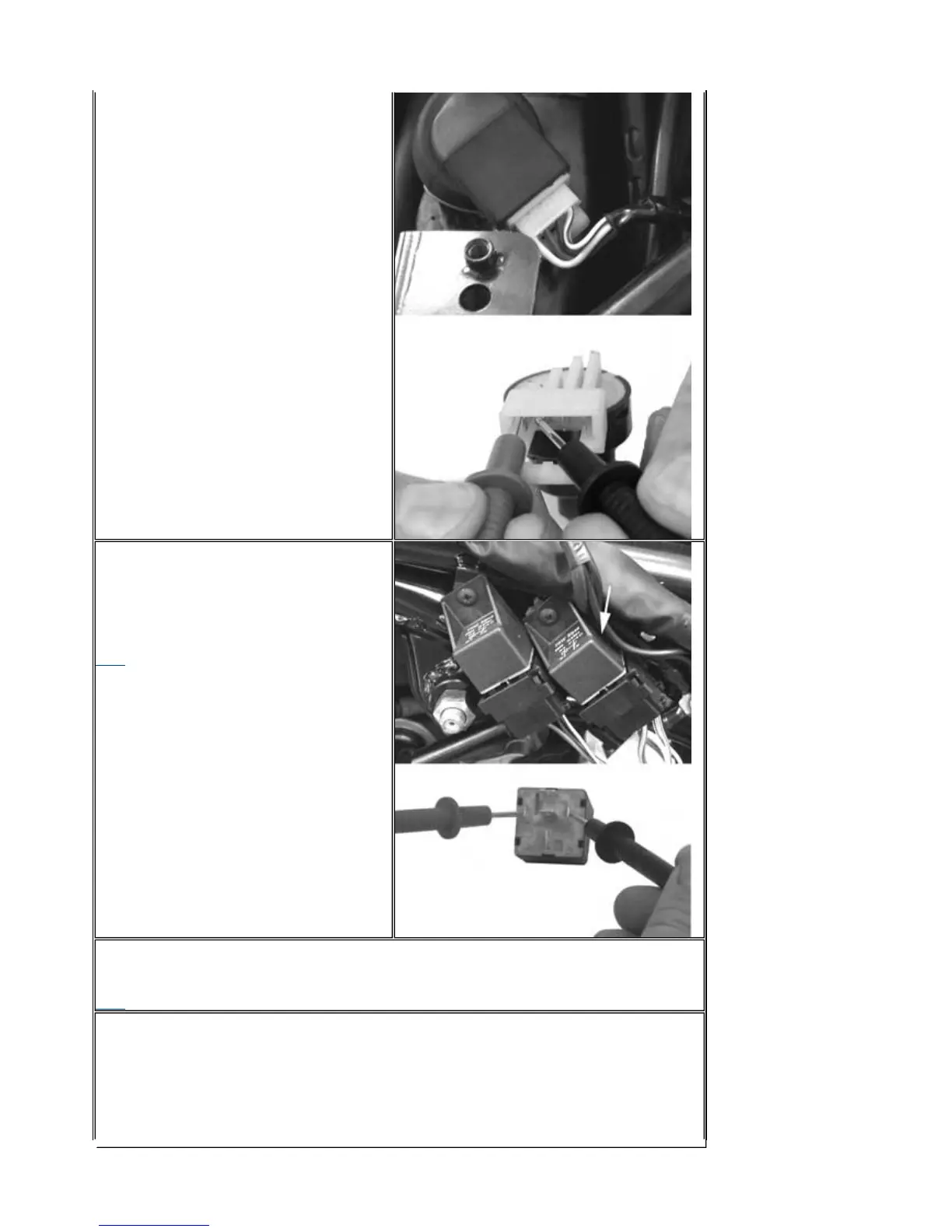

-Check the engine stop remote control
switch connector and the switch efficiency.
The connector can be recognised by its
larger section white lead.
NOTE: check the coil resistance
85 - 86 =
∼
70
Ω
YES go to 15
15
-Check the signal circuit:
- emergency switch and connector
- side stand switch and connector
YES go to 16
16
-Check the wiring continuity. Check the utility control main remote control switch.
Disconnect the master remote control switch.
Check the diode installed on the earth connection of the main remote control switch pickup.
86 - earth = continuity with high resistance (connect the tester: positive with 86; negative with
earth). When the polarity is inverted there should be no continuity.
