- Using a bent beak greaser, lubricate thedriven pulley unit with about 10 gr. of grease
TUTELA MRM2
, this
operation should be carried out through one ofthe two holes into the bushing to obtain the exit of the grease from
theopposite hole. This operation is required to prevent the presence of greasebeyond the O-rings.
- Insert the new oil guards
- Insert the new O-rings
N.B.: O-rings are of two
sizes. The large one is
installed on the
machining end radius, at
the base of the half-
pulley.

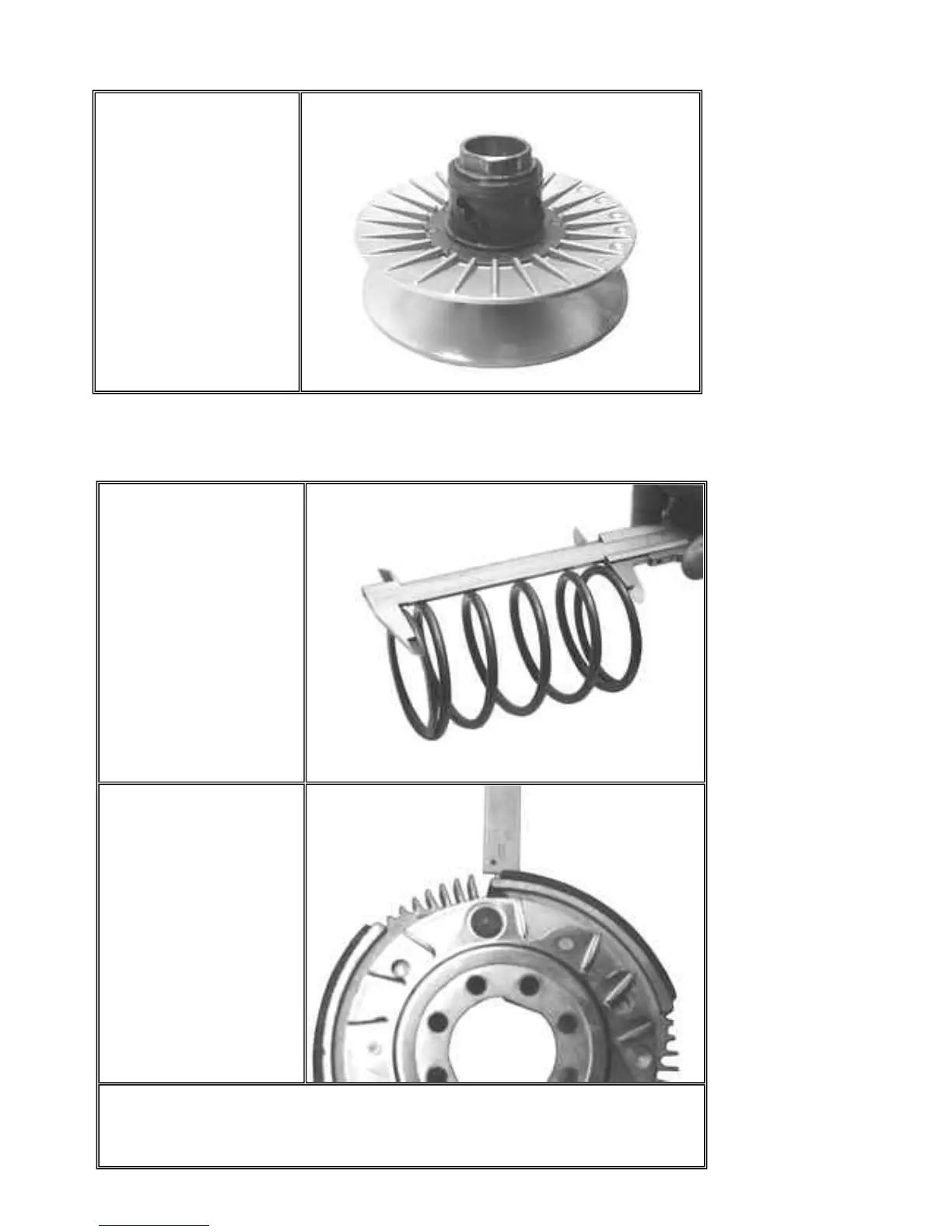

- Install the half-pulley on the
bushing being careful not to
damage the top sealing ring
during the introduction.
- Check that the pins and the
collar are free from wear;
install pins and collar.
PGO BR-500 ENGINE
- Measure the free length of
the mobile driven half-pulley
spring.
Standard length: 125.5
mm
Admissible limit after
use: 120 mm
- Check the thickness of the
clutch mass friction material.
Minimum admissible
thickness: 1 mm
- The masses must exhibit no
traces of lubricants; in that
case, check the driven pulley
unit seals.
N.B.: Upon running-in, the masses must exhibit a central contact surface
and must not be different from one another. Different conditions may
cause the clutch tearing.
- Do not open the masses using tools to prevent a variation in the return spring load.
P.10-10
Automatic Transmission
