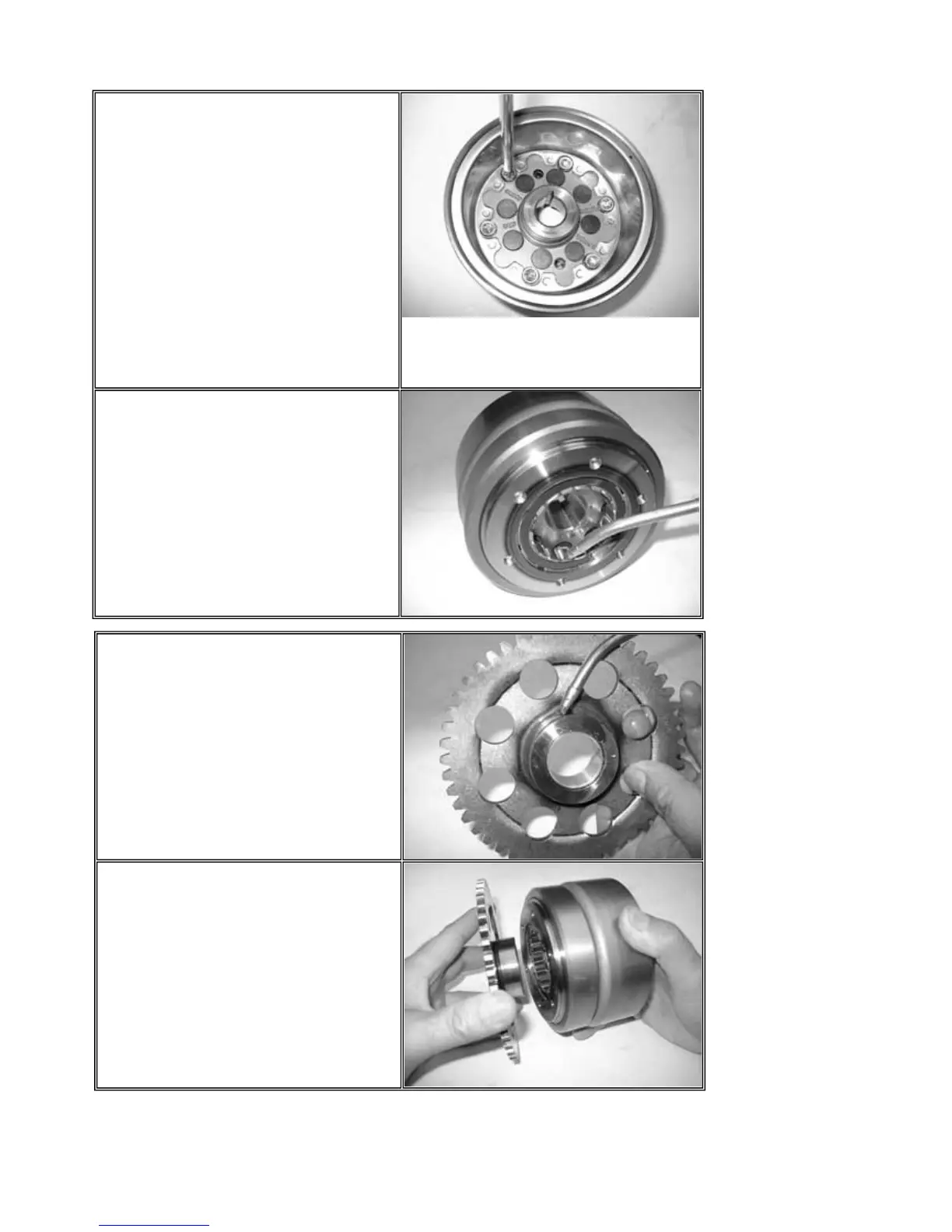

- Check that the free wheel contact surfaces
are in good condition.
- Carefully clean the free wheel to remove any
residues of LOCTITE.
- Degrease the threading of the holes on the
free wheel and the fastening screws.
- Apply LOCTITE 234 at the ends of the
screws.
- Install the free wheel on the magneto
flywheel, with the rectified part in contact with
the flywheel, that is with visible wheel snap
ring.
- Tighten the 6 fastening screws in a crossed
sequence at the prescribed torque.
Tightening torque:
Free wheel fastening screws:
13 ~15 Nm
- Lubricate the free wheel "rollers"
PGO BR-500 ENGINE
- Lubricate the inside brass and the start-up
rim hub surface.
- Install the start-up rim on the flywheel turning
it clockwise and inserting at the same time.
