EVOLV SHIFT XT

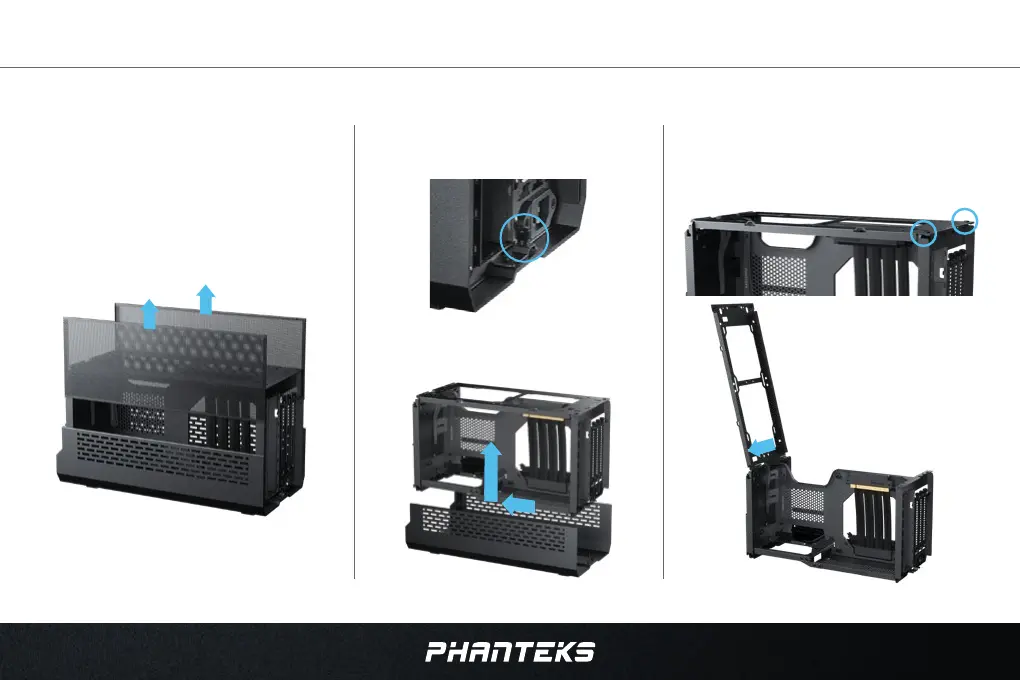

Removing the mesh panels
1. Slide the mesh panels up to
remove them
REMOVING THE EXTERNAL PANELS
Remove the chassis
1. Remove the thumb screw at the rear
2. Slide the chassis to the front and lift it
from the bottom panel
Remove the radiator bracket
1. Unscrew the two chassis screws to lift
up the radiator bracket.
2. Slide the radiator
bracket sideways to
completely remove it.
1
2
