18
Optional: Secure the graphics card:
1. The GPU can be secured with a velcro tie. Wrap the velcro
tie around the PCI-e power connectors to hold it securely in
position.
*This step is shown again in the chapter ‘Cable Management’ on page 26.

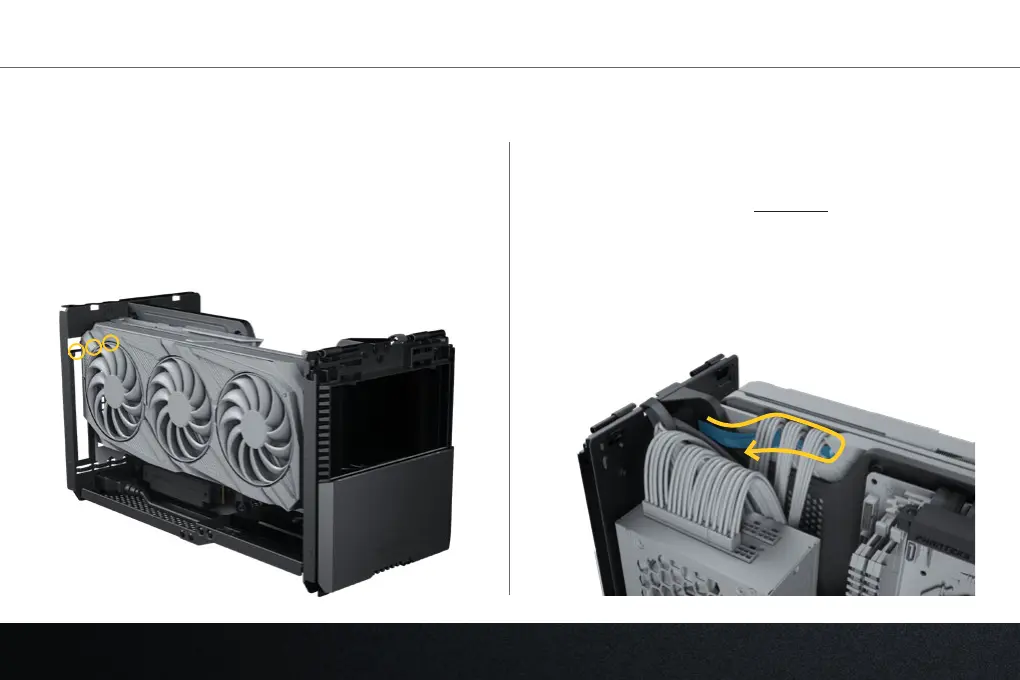

EVOLV SHIFT XTINSTALLING GRAPHICS CARD
A 3-slot graphics card (GPU) can be installed with a length up to 324mm and a total height of up to 147mm.
Installing the graphics card:
1. Remove the 3 PCI-Slot covers by unscrewing the
thumb screws.
2. Install the GPU into the GPU slot and secure it with
the thumb screws.
To Next Page
