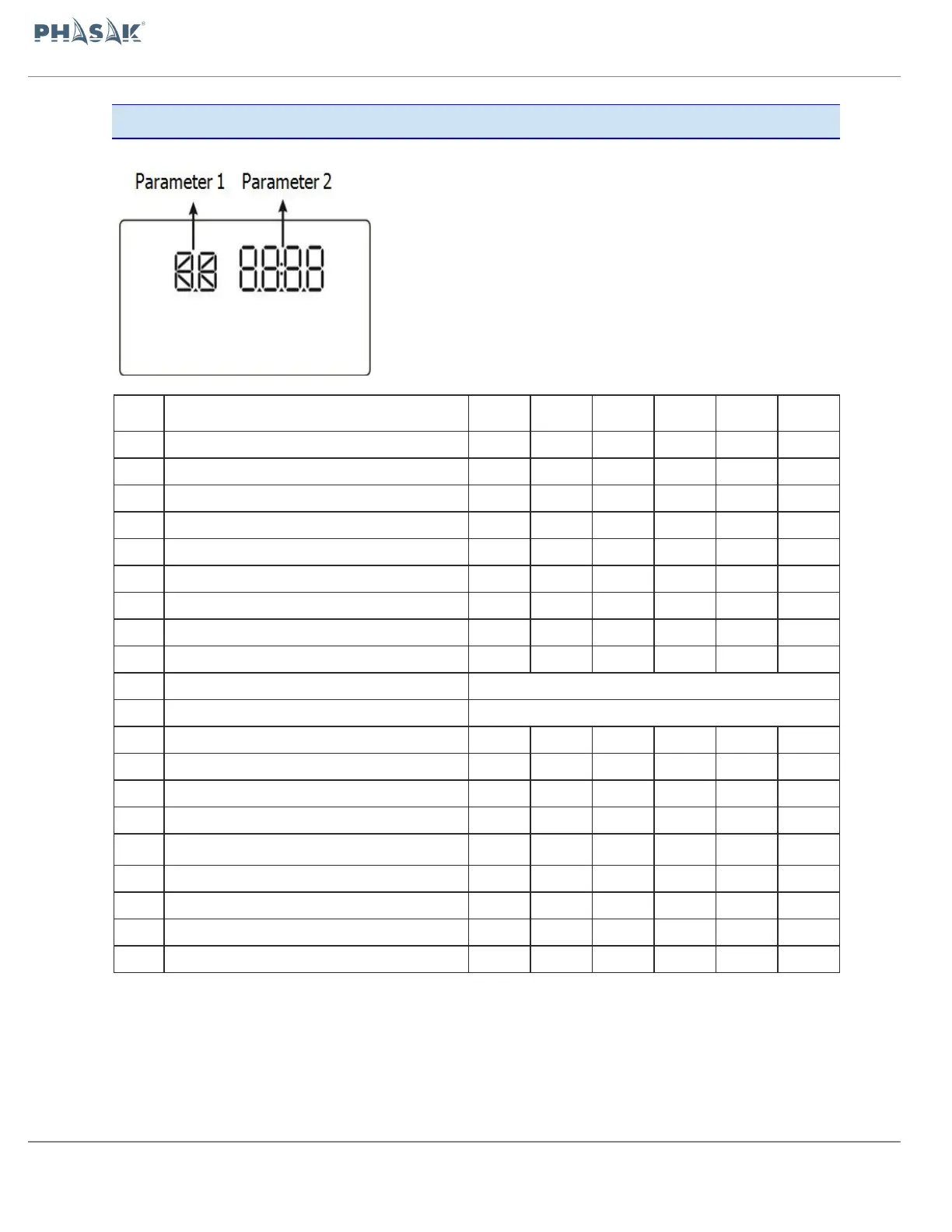

3.7. LCD configuration UPS Phasak
There are two parameters to configure in the UPS:
Parameter 1: It’s for program alternatives or setting options. Refer to
below table.
Parameters 2: is the setting values for each program.
.
List of programs available for parameter 1:
Cód.
Description
Bypass
AC
ECO
CVCF
Batería
Test
batería
01
Output voltage
Yes*
02
Output frequency
Yes
03
bypass voltage range
Yes
04
Frequency range of bypass
Yes
05
Activate / deactivate ECO mode
Yes
06
Voltage range in ECO mode
Yes
07
Configuration frequency range ECO mode
Yes
08
Configuration of bypass mode
Yes
Yes
09
Configuration of battery discharge time
Yes
Yes
Yes
Yes
Yes
Yes
10
Reserved
Reserved for future options
11
Reserved
Reserved for future options
12
Neutral loss detection
Yes
Yes
Yes
Yes
Yes
Yes
13
Calibration of battery voltage
Yes
Yes
Yes
Yes
Yes
Yes
14
Loader voltage regulation
Yes
Yes
Yes
Yes
Yes
Yes
15
Regulation of inverter voltage A
Yes
Yes
Yes
16
Regulation of inverter voltage B
Yes
Yes
Yes
17
Regulation of inverter voltage C
Yes
Yes
Yes
18
Output voltage calibration A
Yes
Yes
Yes
19
Output voltage calibration B
Yes
Yes
Yes
20
Output voltage calibration C
Yes
Yes
Yes
* YES, it means that this program can be configured in this mode. Note: Parameter settings will be recorded only when the UPS
shuts down normally, with connection to internal or external batteries. (A normal shutdown means turning off the input breaker in
bypass mode / no output).
