Mounting the H 101 - P back on the Hasselblad H 1
The H 101 - P back integrates fully with the H1 camera
house and acts as a part of the whole camera system.
When no cassette is attached to the Hasselblad cam
-
era house, the mirror is up and the shutter is open.
This is the correct position, when no film cassette is
attached.

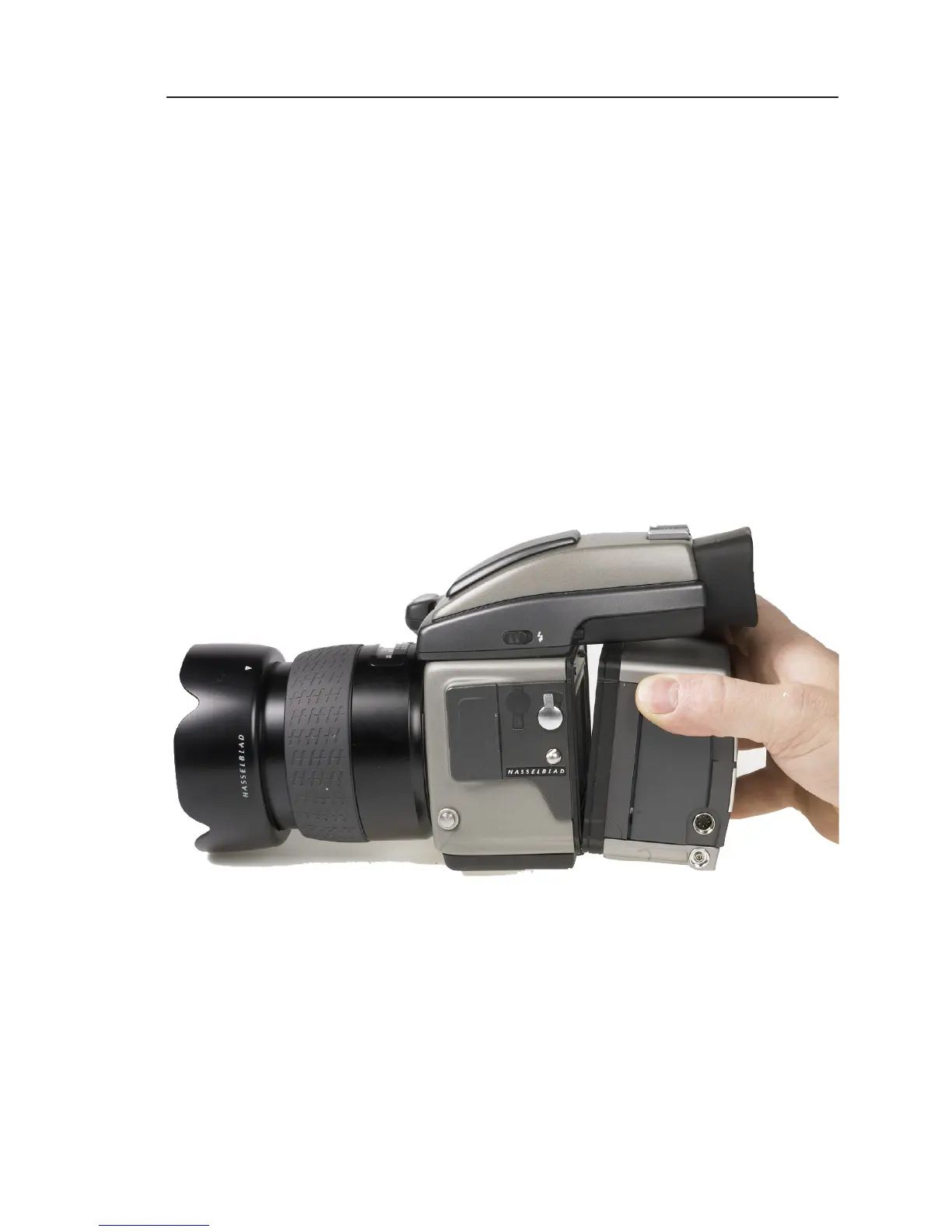

When attaching the H 101 - P back to the camera
house, the shutter will close and the mirror comes
down.
It is important to ensure that the bottom part of the H
101 - P back camera back is pressed well into the lock-
ing mechanism before the upper locking mechanism
is pressed together.
