- 43 -

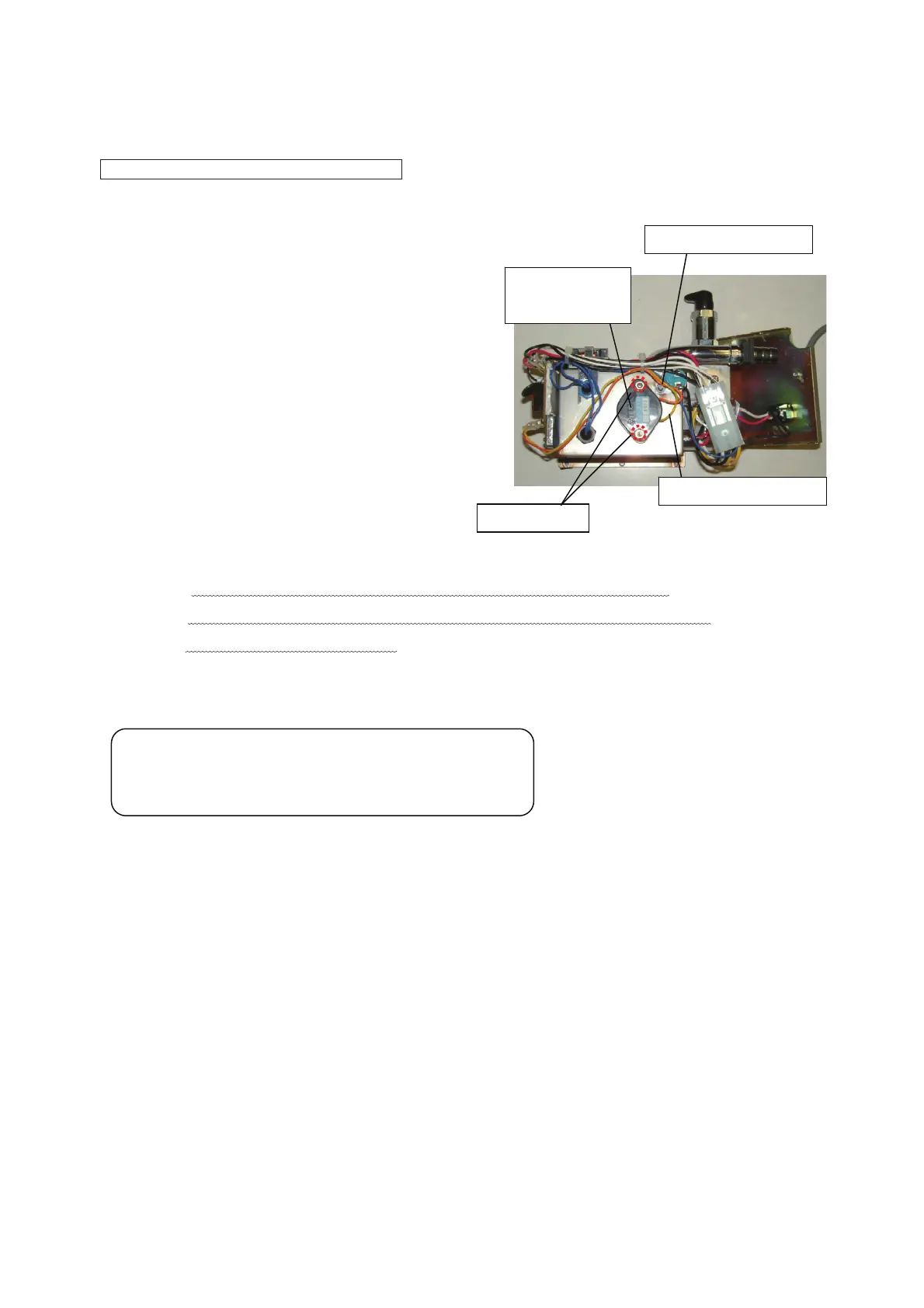

(d) Replace high frequency vibration unit
1) Follow (b) Clean-up water tank, 1)~7) to remove
cover from water tank.
2) Cut the tie band.
3) Disconnect lead wires (yellow and orange wires)
from PCB.
4) Loosen and remove 2 screws that secure high
frequency vibration unit and take high frequency
vibration unit out.
5) Replace new unit and secure by tightening 2 screws.
Reconnect lead wires with PCB.
Note) * Grommet for high frequency vibration unit should be aligned correctly.
* Tighten both of screws with even strength, but take care they should not be
tighten with too much strength.
Service part code for high frequency vibration unit
э 624 188 3259
High frequency
vibration unit
Lead wire (yellow)
Lead wire (orange)
Screw (2pcs)
To Next Page
