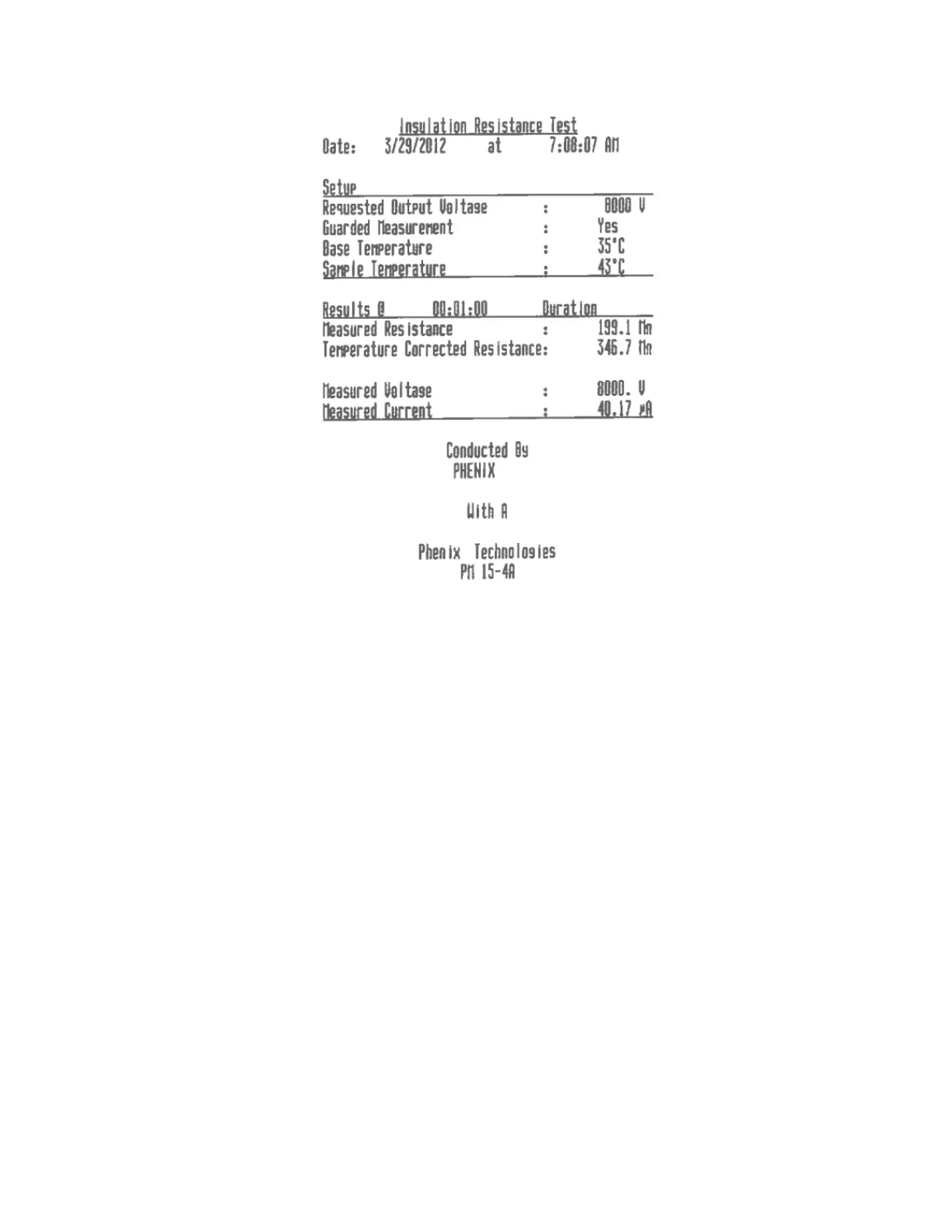

Figure 11: Insulation Resistance Test Results Sample Printout
Figure 11 shows a sample printout of the results of an Insulation Resistance Test. This printout reflects I.R.
results of a one-minute duration test with output voltage of 8kV under Guard Mode operation.
